Chapter 2: Jumpers and Connectors

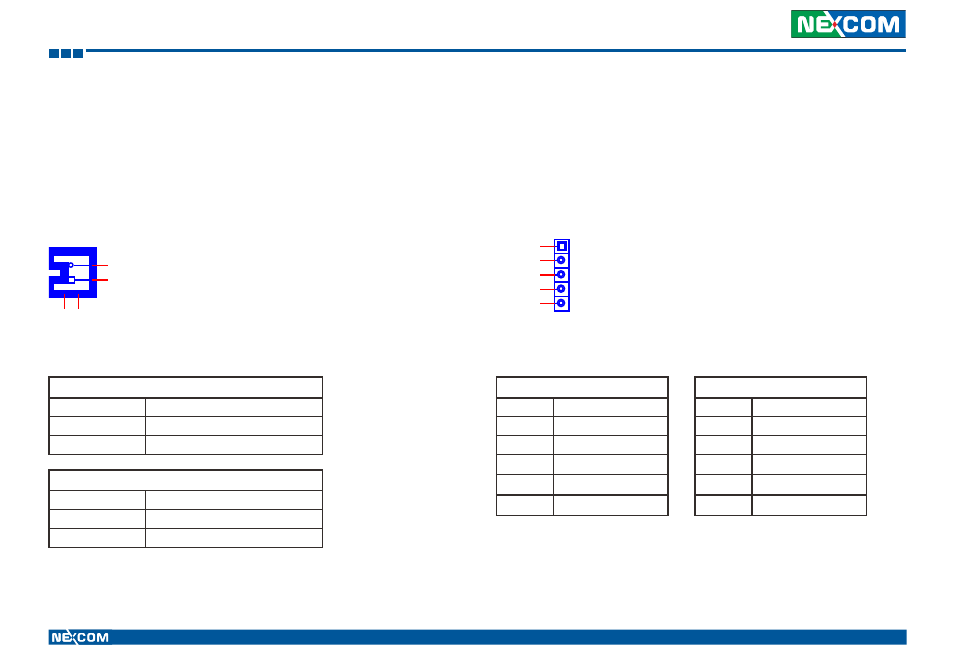

Speaker Connector
Connector size: 1mm Wafer 2Pin 180
O
Connector location: J2, J6
J2
PIN Definition
1 FRONT_A_R+_R
2 FRONT_A_R-_R
J2 WAFER-M-90-1mm
1
2
MH1 MH2
J6
PIN Definition
1 FRONT_A_L+_R
2 FRONT_A_L-_R
8051 Download Connector
Connector size: 2.54mm PIN HEADER 5Pin 180
O
Connector location: JP3, JP5
JP3
PIN Definition
1 +V3.3ALW
2 C2D_1
3 MRST_1
4 C2CK_1
5 GND
JP3
PIN-M-180-2.54mm
1
2
3
4
5
JP5
PIN Definition
1 +V_MCU2
2 C2D_2
3 MRST_2
4 C2CK_2
5 GND
