10
VMC 1000 User Manual
Chapter 1: Product Introduction

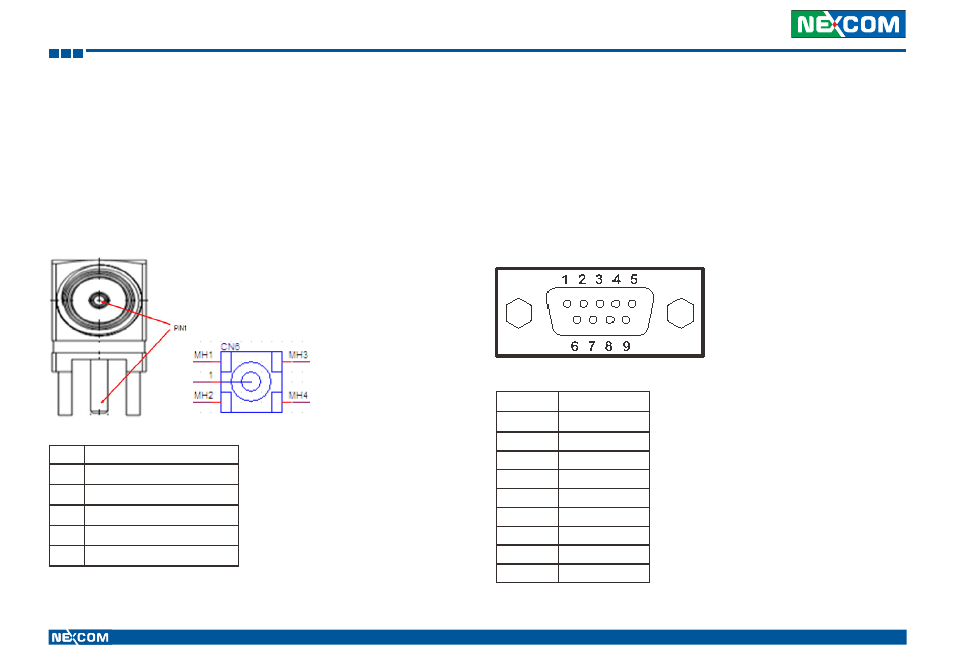

Connector location: CN6
Connector size: GPS SMA Connector 5 Pin
Pin
Definition
1
RF_IN_F
MH1
GND
MH2
GND
MH3
GND
MH4
GND
RS232 Connector
PIn
Definition
1
SP_DCD_0
2
SP_RXD_0
3
SP_TXD_0
4
SP_DTR_0
5
CON0_GND
6
SP_DSR_0
7
SP_RTS_0
8
SP_CTS_0
9
SP_RI_0
Getting to Know VMC 1000
GPS Connector
Connector location: CN10
Connector size: Male DSUB-9 PIN
