11

VMC 1000 User Manual

Chapter 1: Product Introduction

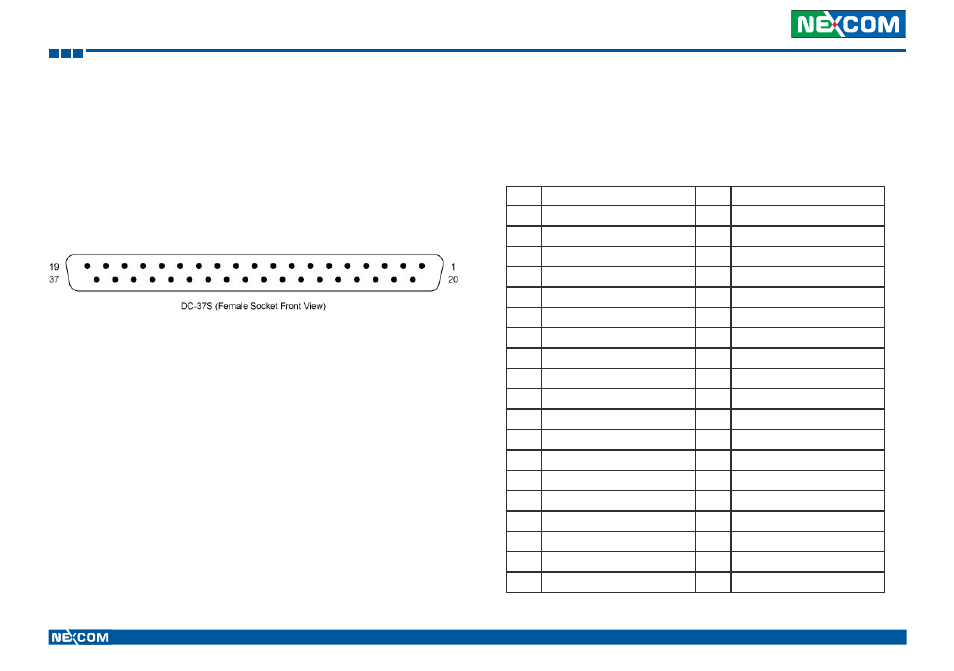

Connector location: CN9
Connector size: Female DB37 PIN Connector

Pin

Definition

Pin

Definition

1

LAN_M0P

20

LAN_M0N

2

LAN_M1P

21

LAN_M1N

3

LAN_M2P

22

LAN_M2N

4

LAN_M3P

23

LAN_M3N

5

L_GND

24

G_OUT1

6

G_IN1

25

G_OUT2

7

G_IN2

26

G_OUT3

8

G_IN3

27

USB_VCC5

9

USB_VCC5

28

HUSB_6N_R

10

HUSB_6P_R

29

HUSB_7N_R

11

HUSB_7P_R

30

RS422_TX+

12

U_GND

31

RS422_TX-

13

RS422_RX+ / RS485_+

32

CANH

14

RS422_RX- / RS485_-

33

CANL

15

SP_RI_1

34

C_GND

16

SP_DCD_1

35

SP_RXD_1

17

SP_TXD_1

36

SP_RTS_1

18

SP_CTS_1

37

SP_DSR_1

19

SP_DTR_1

DB37 PIN Connector
