Chapter 2: Jumpers and Connectors

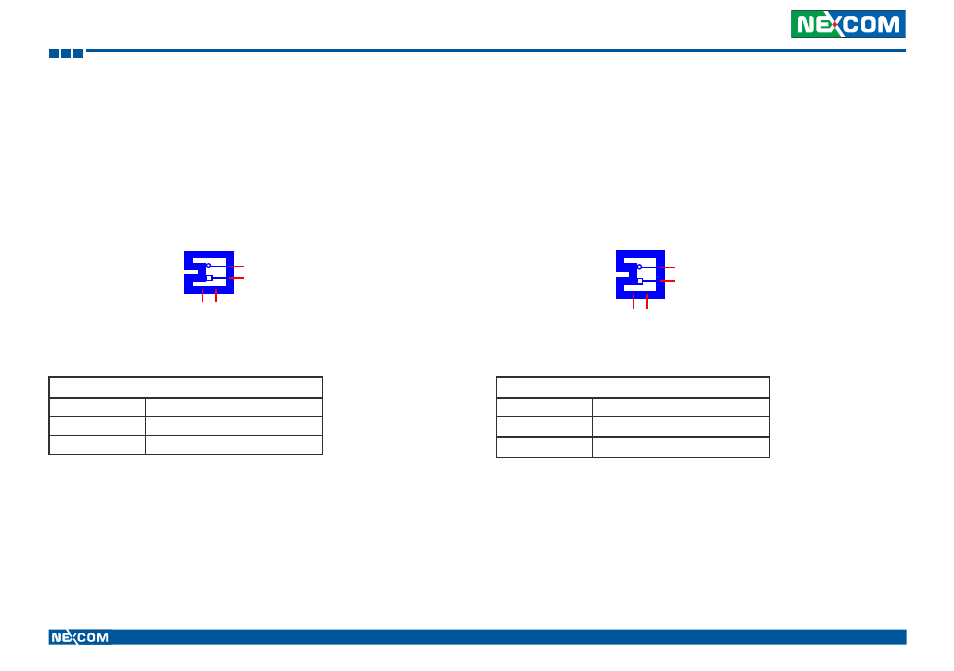

Backlight Connector(power)
Connector size: 1.25mm Wafer 2 Pin 90
O
Connector location: J10
J10
PIN Definition
1 GND
2 Panel_backlight
J10
WAFER-M-90-1.25mm
1
2
MH1 MH2
Backlight Connector(data)
Connector size: 1mm Wafer 2Pin 90
O
Connector location: J8
J8
PIN Definition
1 Brightness
2 BK_EN
J8
WAFER-M-90-1mm
1
2
MH1 MH2
