Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved 19 VMC 1000 User Manual

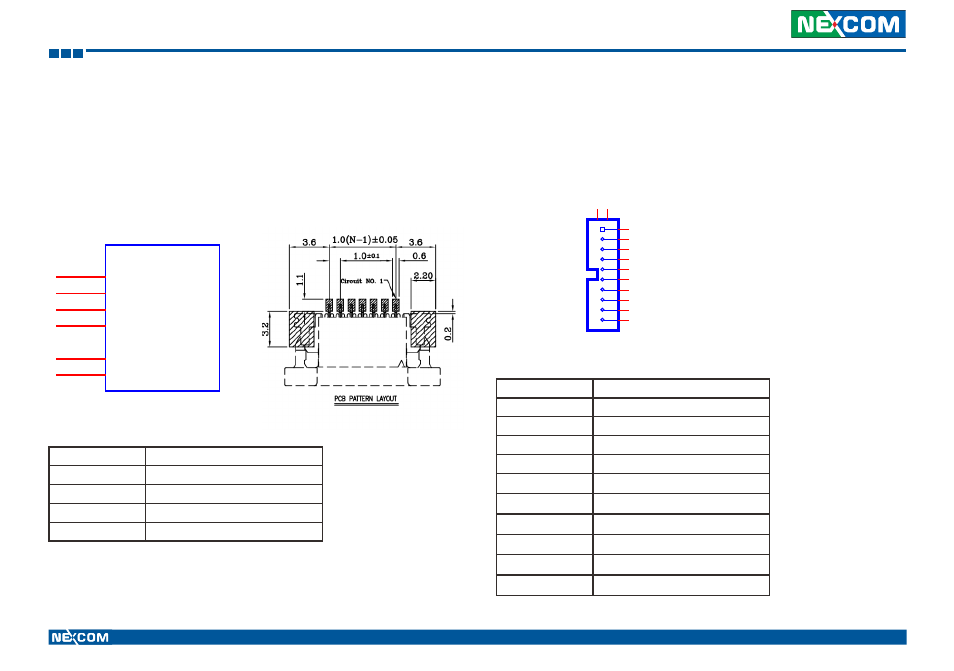

Chapter 2: Jumpers and Connectors
Touch Screen Connector
Connector size: FPC_1X4P-1mm
Connector location: CN1
FPC CON 1mm
FPC_1X4P-1mm
CN1
1
1
2
2
3
3
4
4
MH1
MH1
MH2
MH2
PIN Definition
1 TOUCH_XL
2 TOUCH_YD
3 TOUCH_XR
4 TOUCH_YU
Button & Sensor & LED Connector
Connector size: 1mm Wafer 10 Pin180
O
Connector location: J5
PIN Definition
1 LS_D
2 LS_A
3 KEY_V+
4 KEY_V-
5 KEY_BL+
6 KEY_BL-
7 BOT_M_N
8 AUTO_BL_LED
9 POWER_LED
10 GND
J5
WAFER-M-180-1mm
1
2
3
MH1 MH2
4
8
7
6
5
10
9
