Line-out jack mic-in jack – NEXCOM VMC 1000 User Manual
Page 27
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
14
VMC 1000 User Manual
Chapter 1: Product Introduction
Connector location: CN7
Connector size: EAR PHONE JACK PINK
Pin
Definition
1
FRONT_OUT_RC
2
LINE_OUTD
3
NC
4
FRONT_OUT_LC
5
ACON_GND
6
ACON_GND

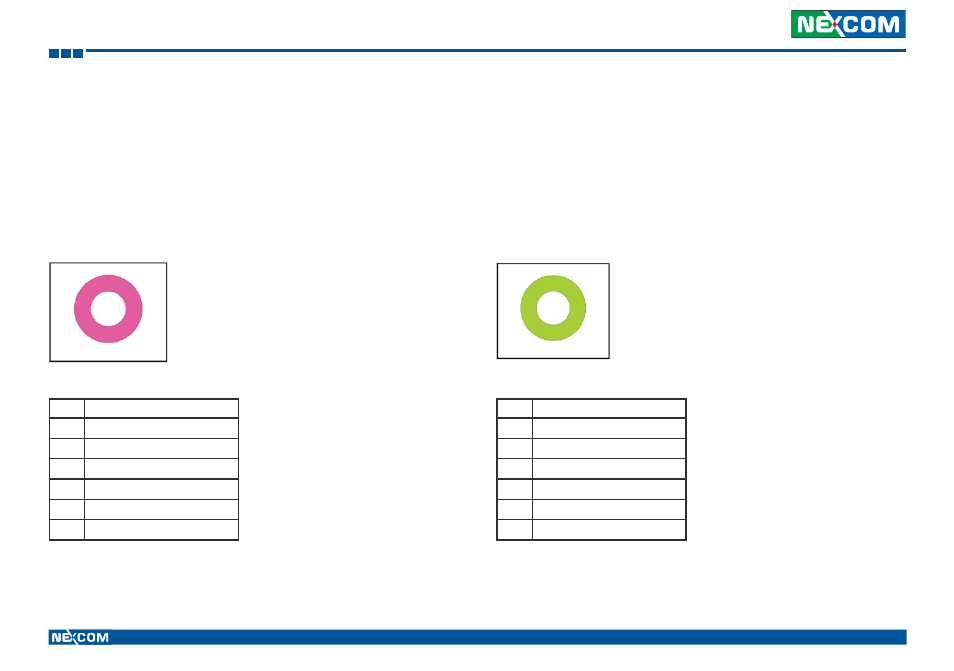

Line-out Jack
Mic-in Jack
Connector location: CN8
Connector size: EAR PHONE JACK GREEN
Pin
Definition
1
NC
2
MIC_JD
3
NC
4
MIC_OUT-L
5
ACON_GND
6
ACON_GND
