Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved 28 VMC 1000 User Manual
Chapter 2: Jumpers and Connectors

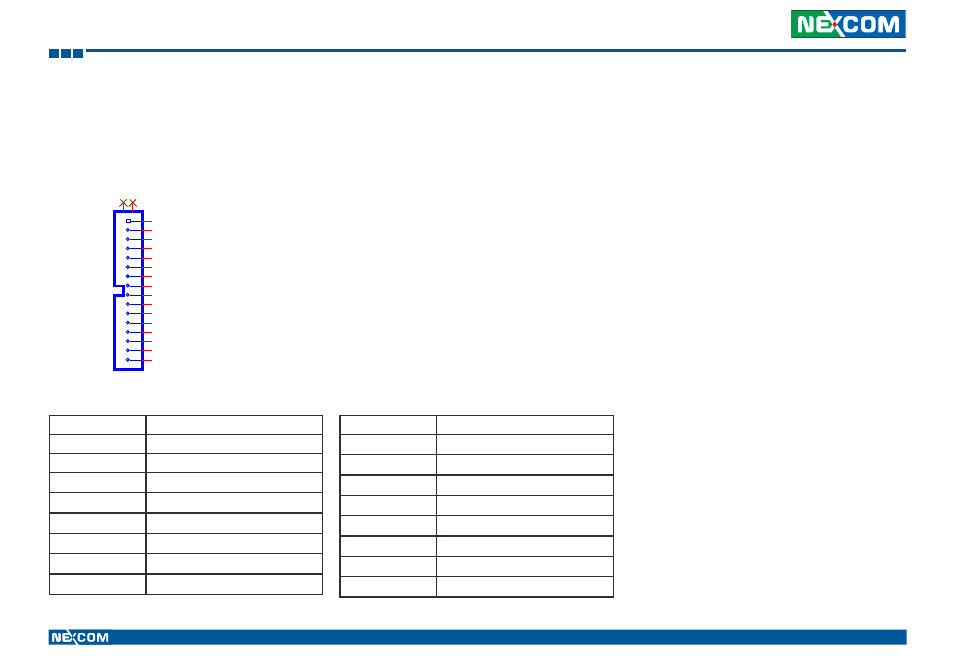

POWER_IN Connector
Connector size: 2.5mm Wafer 6 Pin 180
O
Connector location: J12
PIN Definition
1 V_IN
2 V_IN
3 V_IN
4 V_IN
5 V_IN
6 V_IN
7 V_IN
8 IGNITION
J12
WAFER-M-180-1.0mm
3
MH1 MH2
4
8
7
6
10
9
11
12
5
13
14
15
1
2
16
PIN Definition
9 IGNITION
10 V_GND
11 V_GND
12 V_GND
13 V_GND
14 V_GND
15 V_GND
16 V_GND
