Chapter 2: Jumpers and Connectors

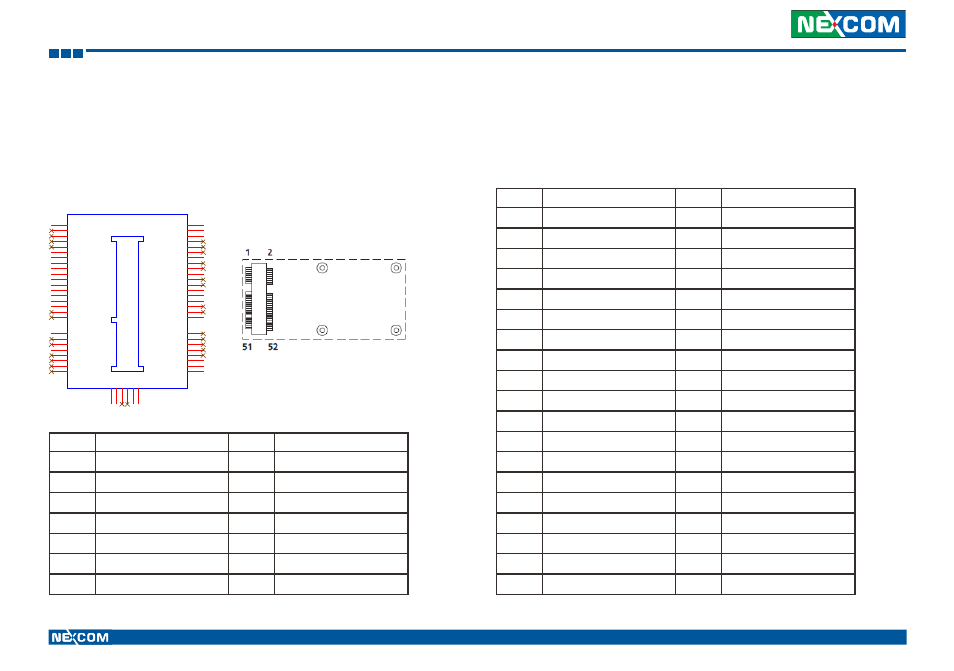

MINI PCIE Connector
MINI PCIE Connector Interface: M-Sata
Connector location: CN2
PIN Definition PIN Definition
8 NC 34 GND
9 GND 35 GND
10 NC 36 NC
11 NC 37 GND
12 NC 38 NC
13 NC 39 +3.3C_MINI
14 NC 40 GND
15 GND 41 +3.3C_MINI
16 NC 42 NC
17 NC 43 NC
18 GND 44 NC
19 NC 45 NC
20 NC 46 NC
21 GND 47 NC
22 NC 48 D15VS
23 SATA_TXP1 49 NC
24 +3.3C_MINI 50 GND
25 SATA_TXN1 51 GND
26 GND 52 +3.3C_MINI
MINI PCIE CON
Ver:1.2
CN2
REV1 51
REV2 49
REV3 47
REV4 45
GND14
43
3.3VSB_5 41
3.3VSB_4
39
GND13 37
GND0 35
PETp0 33
PETn0 31
GND2
29
GND3 27
PERp0 25
PERn0 23
GND4 21
REV9/UIM_C4
19
REV10/UIM_C8 17
GND5 15
REFCLK+ 13
REFCLK- 11
GND6
9
CLKREQ# 7
COEX2
5
COEX1 3
WAKE# 1
3.3VSB_2 52
GND7 50
1.5V_1 48
LED_WPAN# 46
LED_WLAN#
44
LED_WWAN# 42
GND8
40
USB_D+ 38
USB_D- 36
GND9 34
SMBDAT 32
SMBCLK
30
1.5V_2 28
GND10 26
3.3VSB_1 24
PERST# 22
W_DISABLE#
20
GND11 18
UIM_VPP 16
UIM_RESET 14
UIM_CLK 12
UIM_DATA
10
UIM_PWR 8
1.5V_3
6
GND12 4
3.3VSB_3 2
MH1
MH1
MH2
MH2
MH3
MH3
MH4
MH4
MH5
MH5
MH6
MH6
PIN Definition PIN Definition
1 NC 27 GND
2 +3.3C_MINI 28 D15VS
3 NC 29 GND
4 GND 30 NC
5 NC 31 SATA_RXN1
6 D15VS 32 NC
7 NC 33 SATA_RXP1
