Chapter 2: Jumpers and Connectors

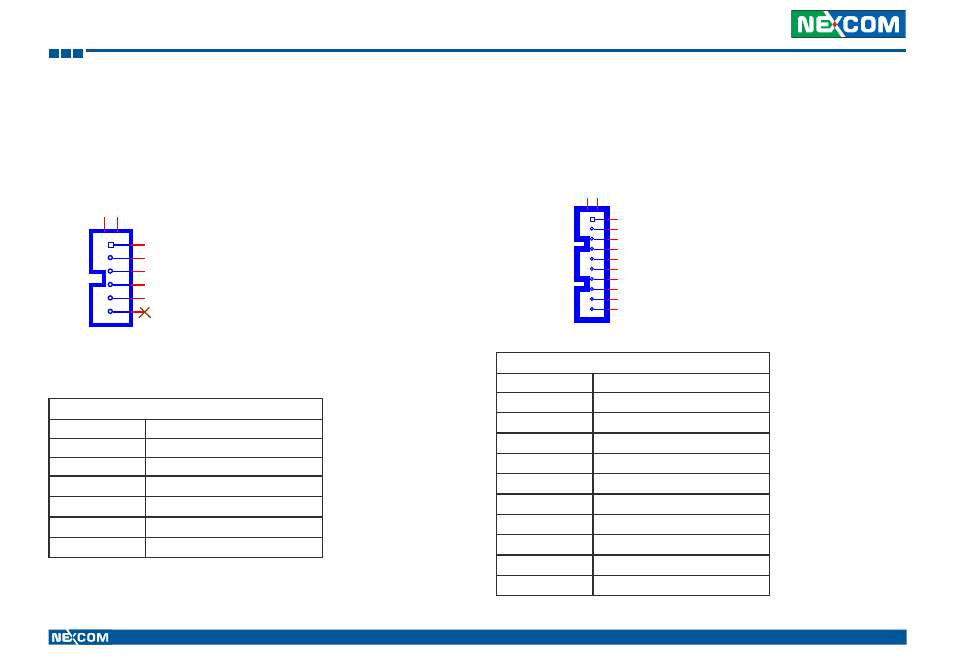

CCD Conector
Connector size: 1mm Wafer 6 Pin 90
O
Connector location: J3
J3
PIN Definition
1 CCD_PWR
2 HUSB_9N
3 HUSB_9P
4 GND
5 CCD_EN_L
6 NC
J3
WAFER-M-90-1mm
1
2
3
MH1 MH2
4
5
6
PORT 80 Connector
Connector size: 1mm Wafer 10 Pin 90
O
Connector location: J9
J9
PIN Definition
1 VCC3_S
2 VCC3_S
3 LPC_AD0
4 LPC_AD1
5 LPC_AD2
6 LPC_AD3
7 LPC_FRAME#
8 LPC_CLK2
9 SIO_RST#
10 GND
J9 WAFER-M-90-1mm
1
2
3
MH1 MH2
4
5
6
10
9
8
7
