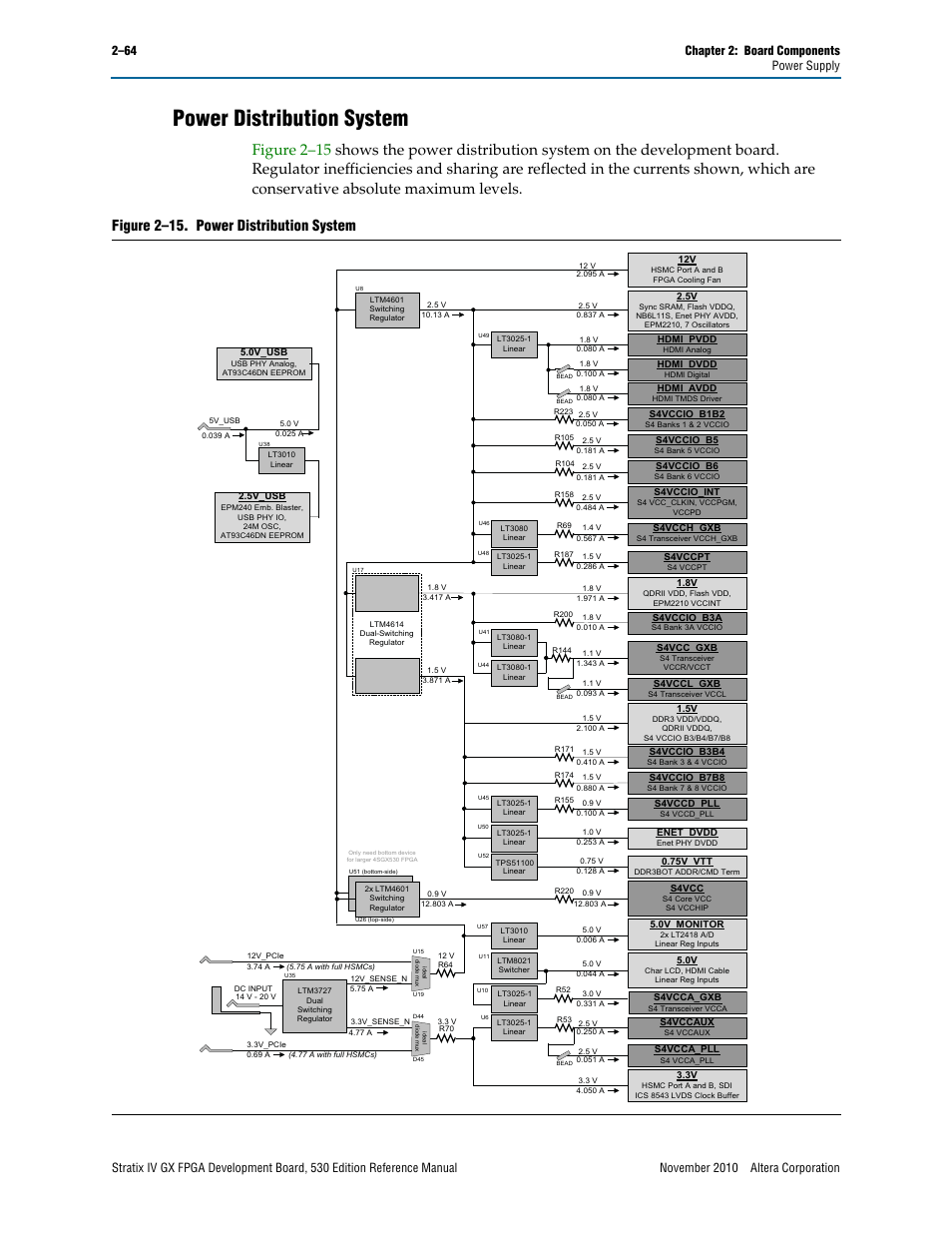

Power distribution system, Power distribution system –64, Figure 2–15. power distribution system – Altera Stratix IV GX FPGA Development Board User Manual
