Operating Manual PMCtendo SZ
1002405-EN-03
46
9 Technical data
9.7
Thermal winding protection
Technical data for PTC drilling

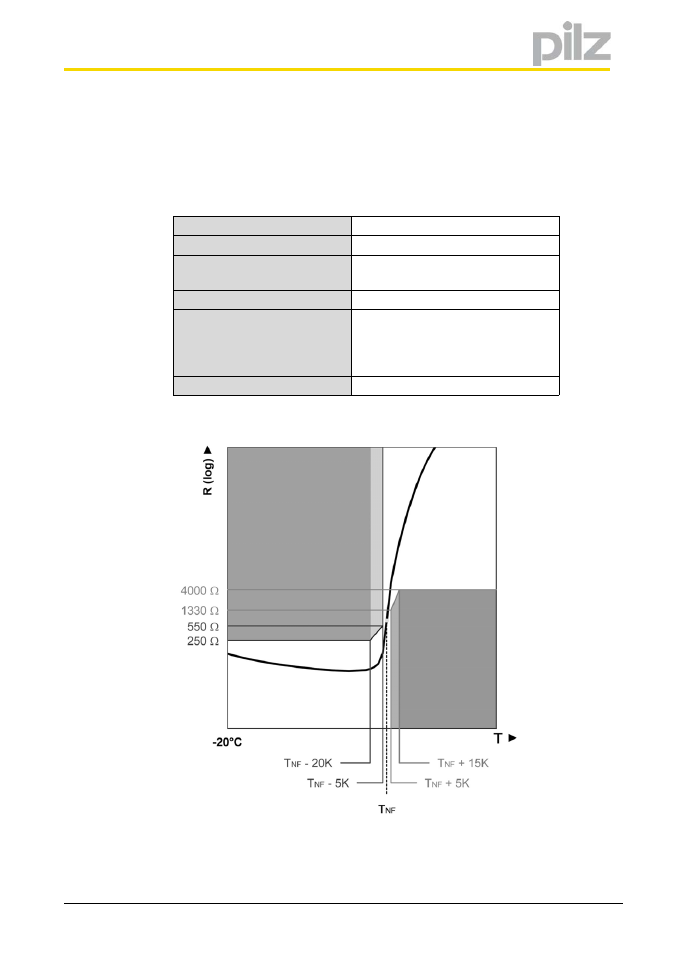

Characteristic line of the individual PTC resistor
max. operating voltage
7.5 V
DC
Cold resistance R
25°C
≤ 750 Ω
Nominal response temperature
(NRT)
145°C ± 5 K
Resistance for NRT R
145°C
≥ 3990 Ω
Thermal class
F
(Limit temperature 155°C, warming ∆T =
100 K in accordance with DIN EN 60034/
VDE 0530)
Thermal response time
< 5 s
