5-3
5.3 Install a terminating plate
5 Installation
5.3 Install a terminating plate 5300 Install a terminating plate 5- ][Montage XB/XR Abschlussplatte
You will need two different terminating plates for installation:
 PSSu A EC XB
– is supplied with the remote module.
– The base system is terminated using the terminating plate
PSSu A EC XB.
 PSSu A EC(-T)
– is supplied with the PSSu head modules.
– The remote system is terminated using the terminating plate
PSSu A EC.
INFORMATION
If the base system is accidentally terminated using the terminat-
ing plate PSSu A EC, the I/O modules in the remote system will
not be recognised and will not appear in the process image.

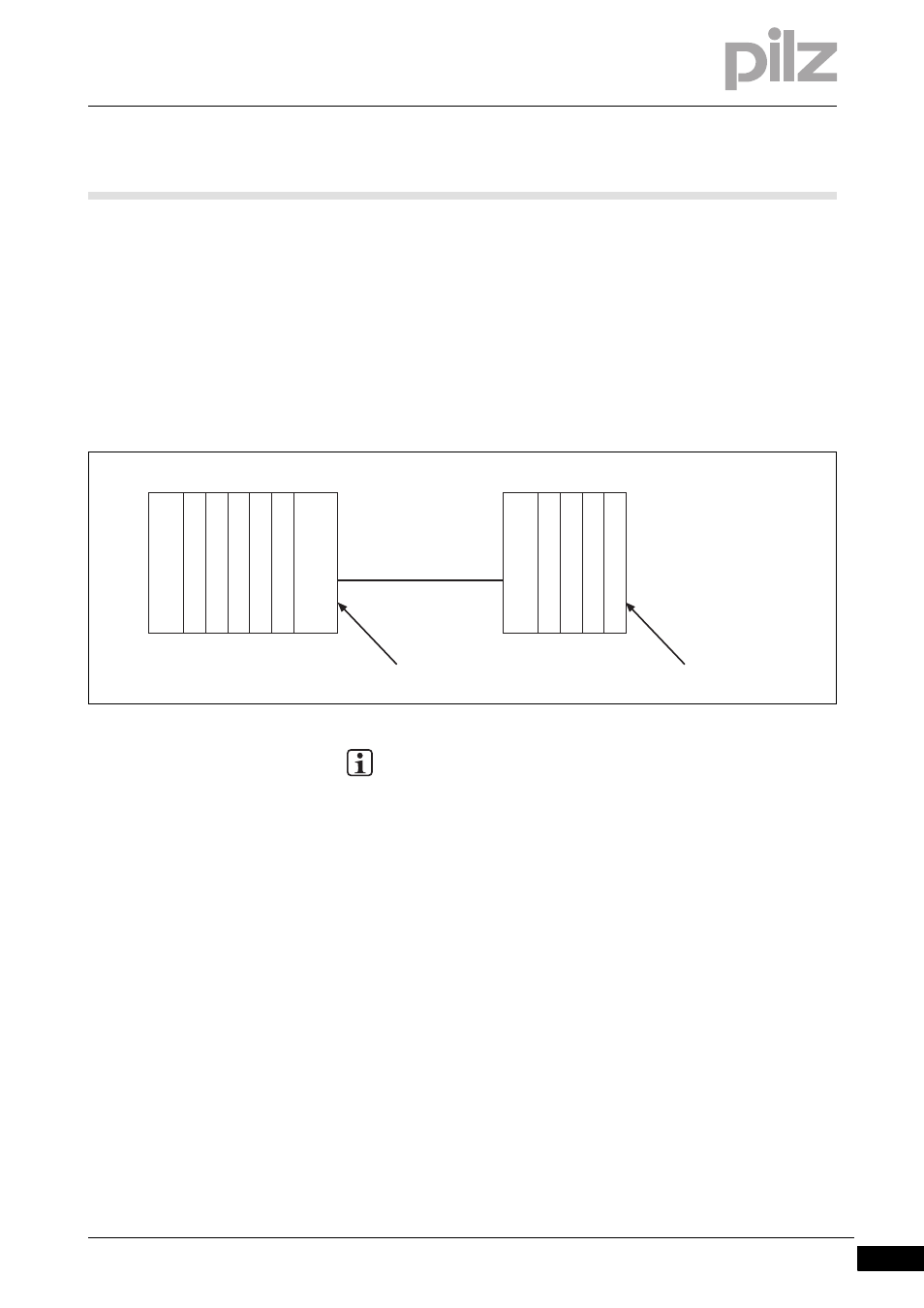

Head module (FS/ST) I/O module (FS/ST) I/O module (FS/ST) I/O module (FS/ST) I/O module (FS/ST) Base station Supply I/O module (FS/ST) Remote station Supply I/O module (FS/ST) I/O module (FS/ST)
Base system Remote system
Terminating plate
PSSu A EC XB
Terminating plate
PSSu A EC
Cable
