2.2 Front view
2 Overview
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
2-2

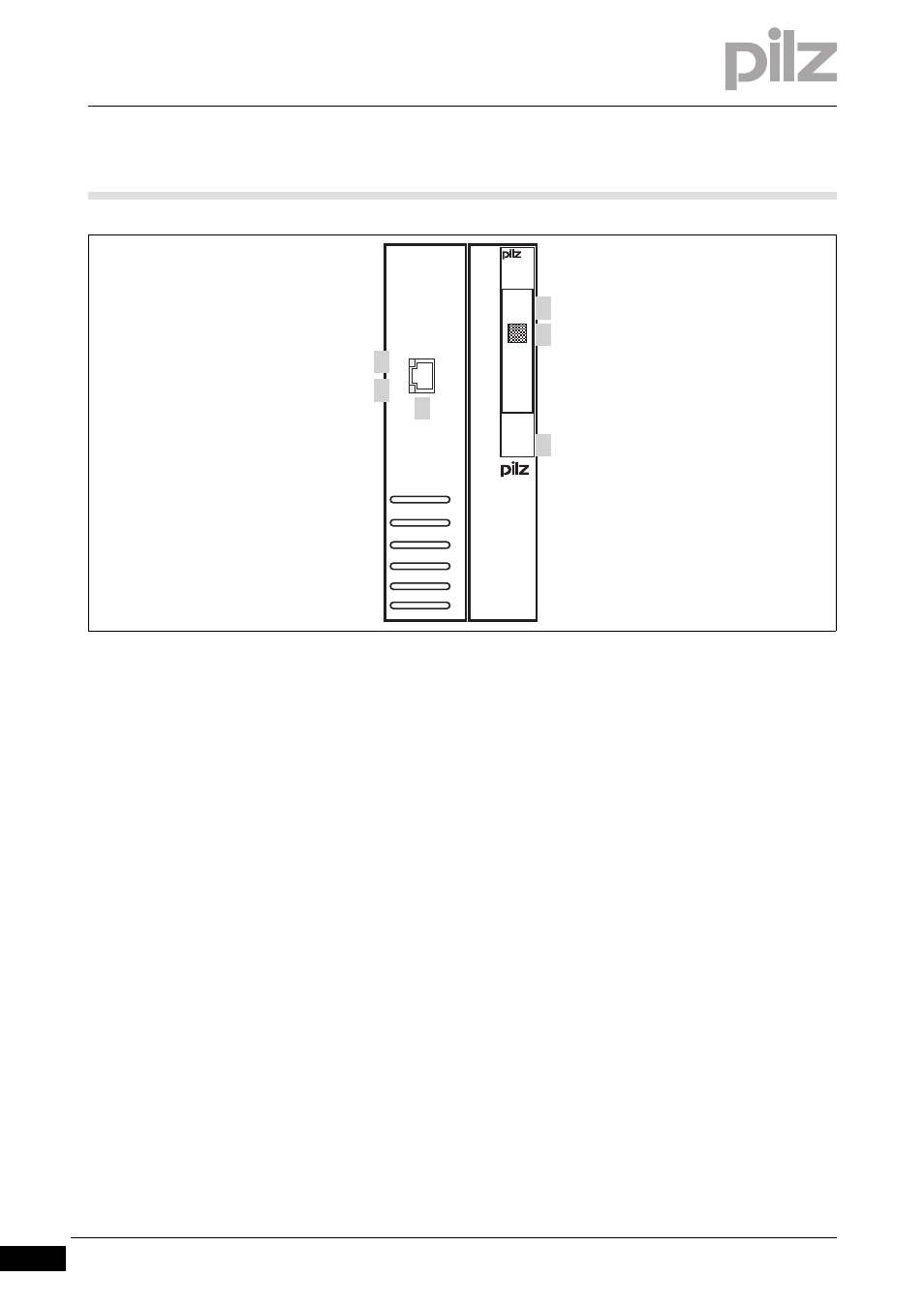

2.2 Front view 2200 Front view 2- BA_Frontansicht
Key:
 1: LED to display the status of data transfer to the ST module bus
 2: LED to display the status of data transfer to the FS module bus
 3: RJ-45 interface
 4: Labelling strip with:
– Order number
– Serial number
– Hardware version number
– Firmware version number on delivery
 5: Field for 2D code
 6: Module name
PSSu
XR-F-T
314 092
0000000
HW 000
000 000
SL
FL
X1 1
2
3
4
5
6
