Overview

Operating Manual PNOZ m ES Profibus
1002698­EN­03

8

2.2

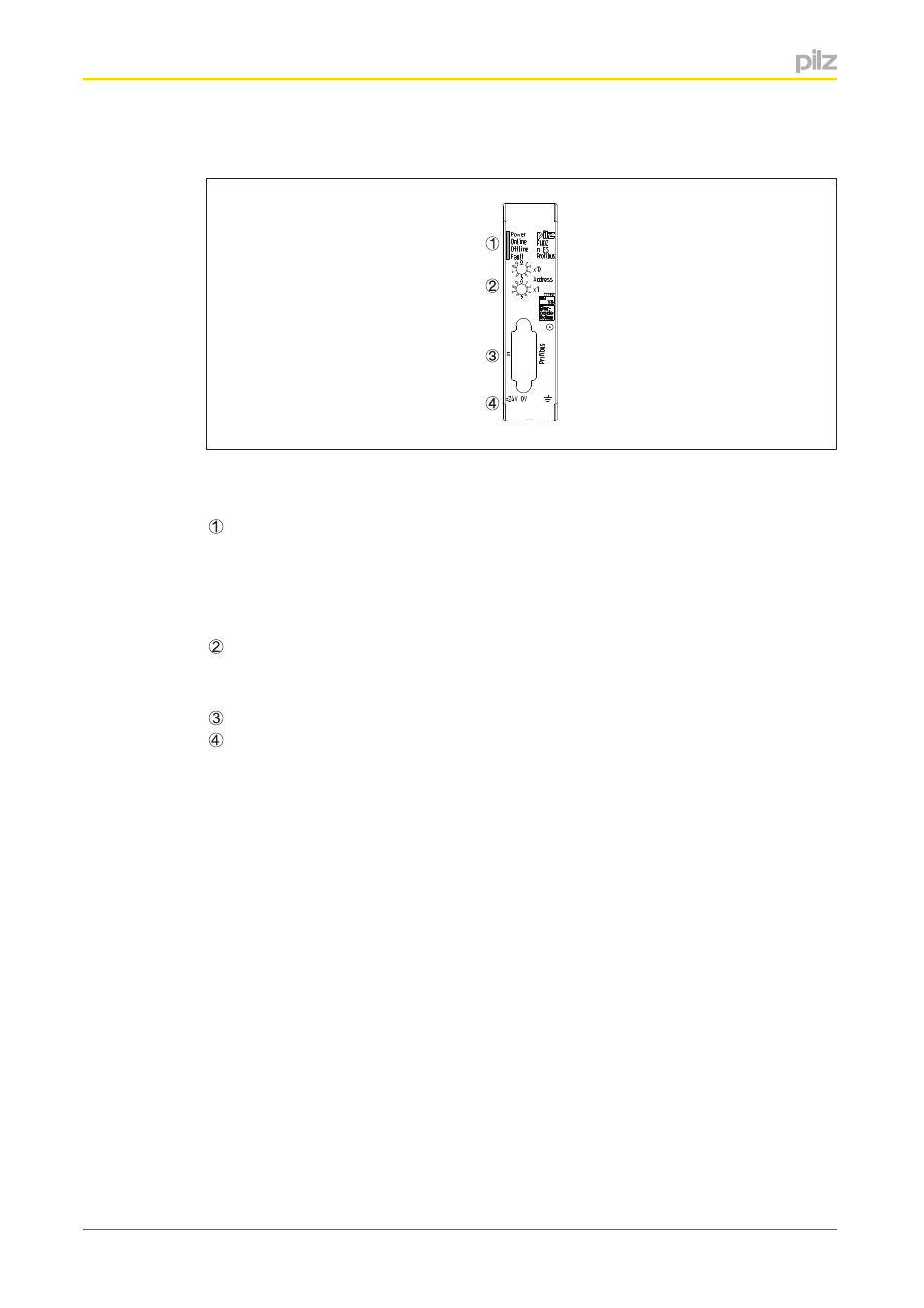

Front view

2.2.1

Key

LED:

­ Power

­Online

­ Offline

­ Fault

Rotary switch

­ x10 = Tens digit for the station address

­ x1 = Units digit for the station address

X1: PROFIBUS­DP interface (female 9­pin D­Sub connector)

X4: 0 V, 24 V:
Supply connections
