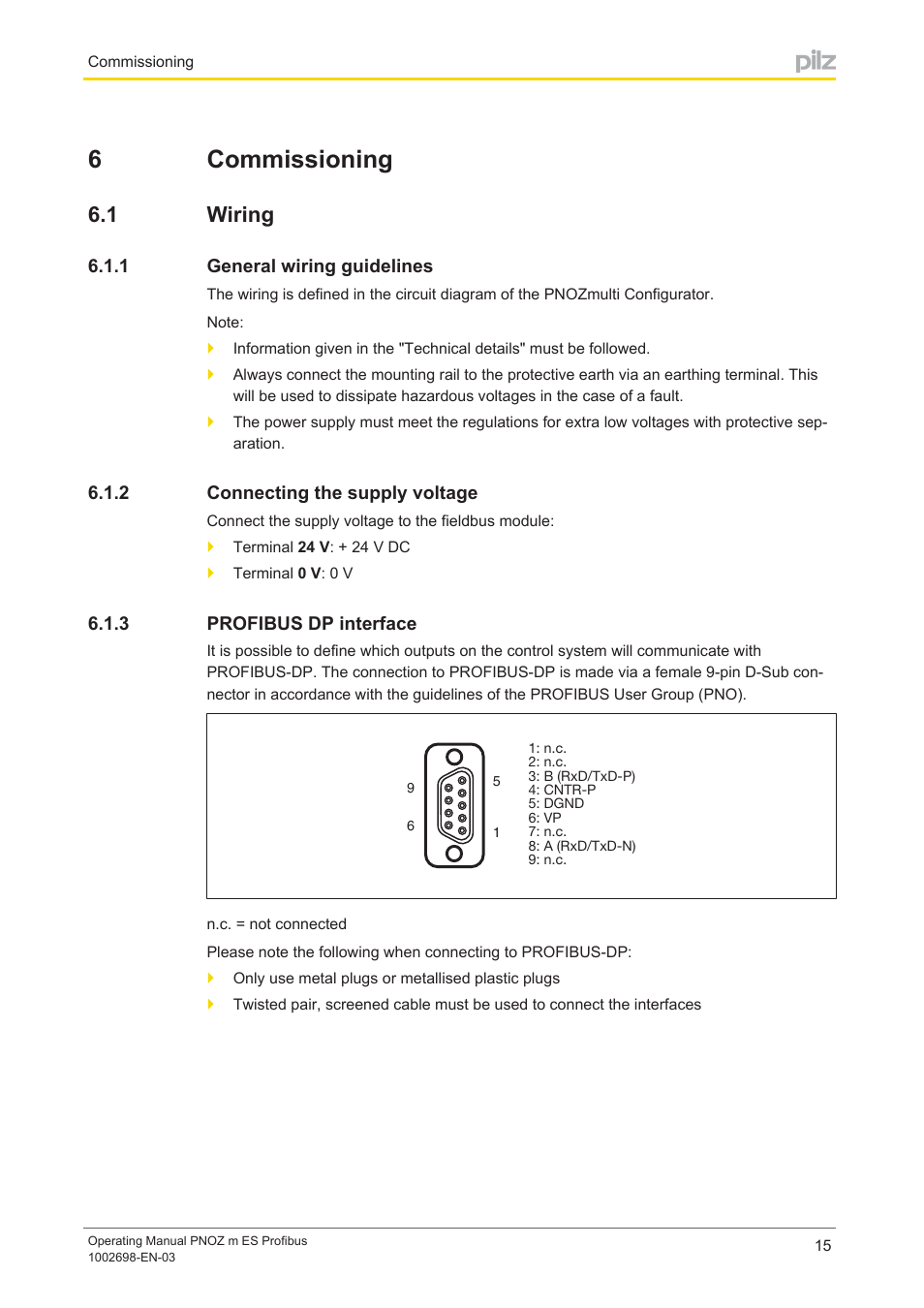

6 commissioning, 1 wiring, 1 general wiring guidelines – Pilz PNOZ m ES Profibus User Manual
Page 15: 2 connecting the supply voltage, 3 profibus dp interface, Section 6, Commissioning, Wiring, General wiring guidelines, Connecting the supply voltage
