Operation
Operating Manual PNOZ m ES ETH
1002700­EN­04 17
7 Operation
When the supply voltage is switched on, the PNOZmulti safety system copies the configur­
ation from the chip card.
The LEDs "POWER","DIAG", "FAULT", "IFAULT" and "OFAULT" light up on the base unit.
The safety system PNOZmulti is ready for operation when the "POWER" and "RUN" LEDs
on the base unit and the "POWER" LED on the PNOZ m ES ETH are lit continuously.

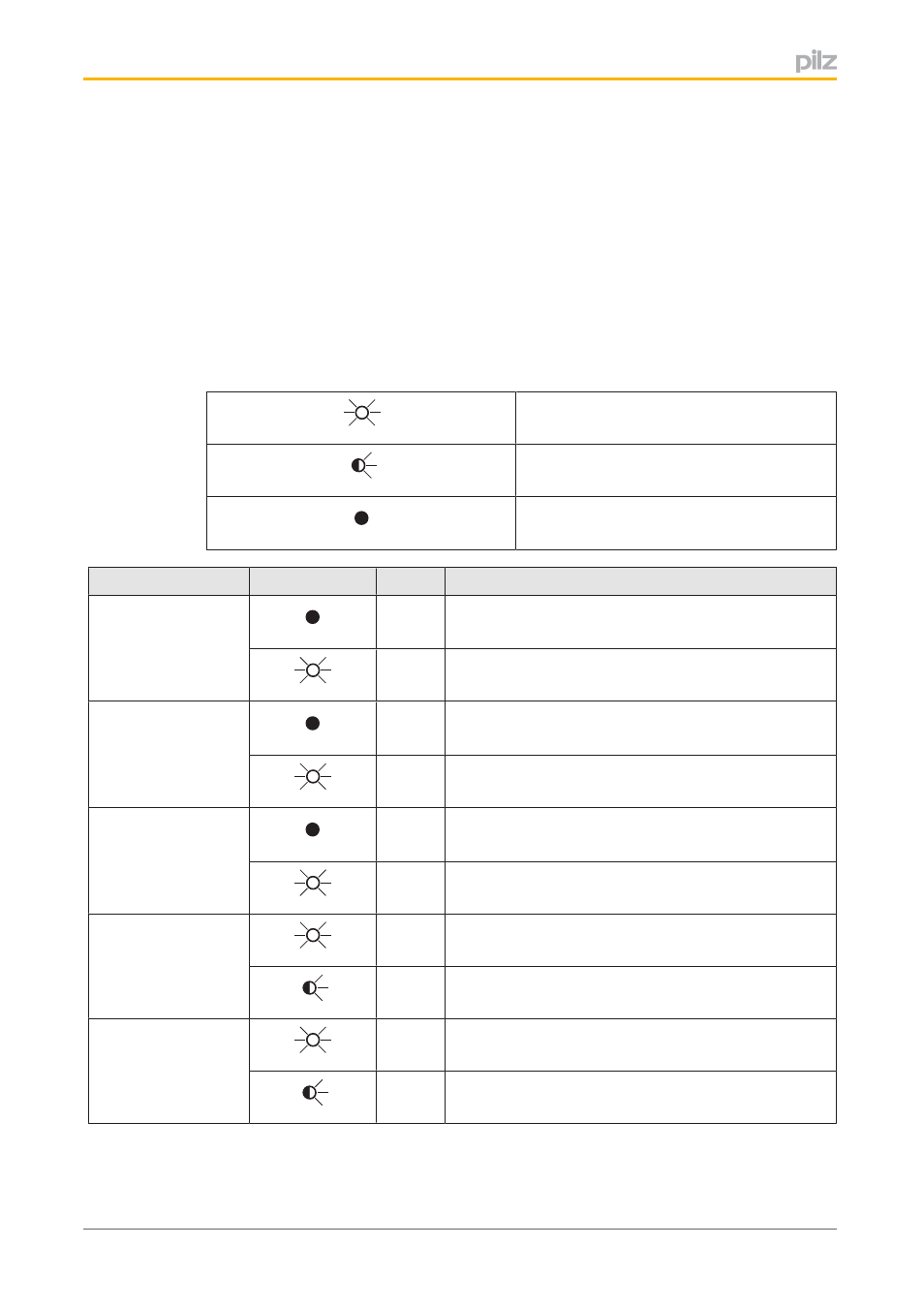

7.1 Messages
Legend:
LED on
LED flashes
LED off
LED LED status Meaning
Power No supply voltage
Green Supply voltage is present
L/A 1 ( Link / Act 1 ) No network connection at X1 / No data traffic at X1
Green Network connection present at X1 / Data traffic present
at X1
L/A 2 ( Link / Act 2 ) No network connection at X2 / No data traffic at X2
Green Network connection present at X2 / Data traffic present
at X2
Fault Red Internal fault
Red No connection to base unit
DHCP Yellow The unit could not be assigned an IP address by the
DHCP Server.
Yellow The unit is waiting for the DHCP Server to assign an IP
address
