Spectrum Controls 1769sc-IF8u User Manual

Page 32

Text mode
Original mode

Compact IO

™

Universal Input module

Mounting

ATTENTION! During panel or DIN rail mounting of all devices, be sure

that all debris (metal chips, wire strands, etc.) is kept from falling into the

module. Debris that falls into the module could cause damage at power up.

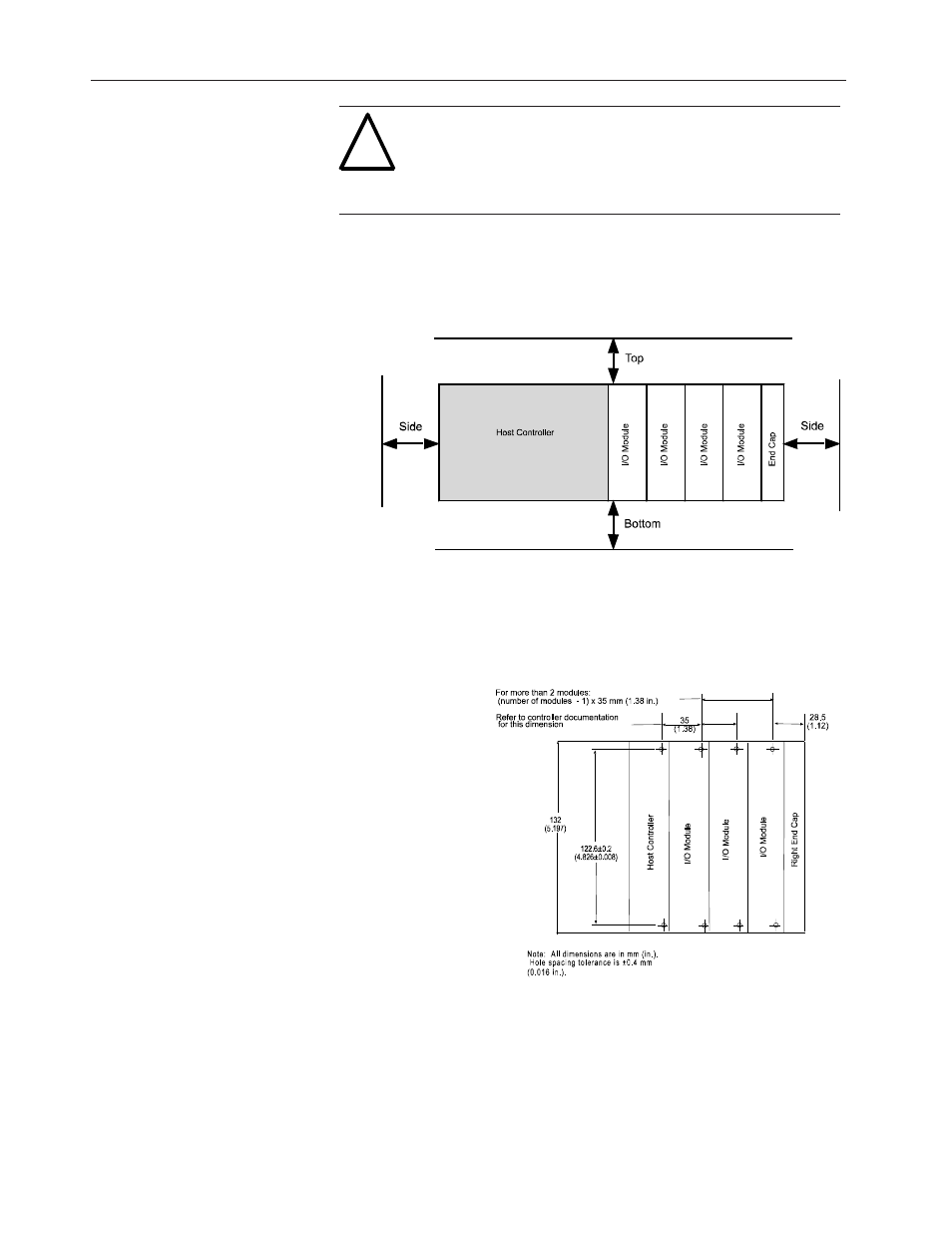

Minimum Spacing

Maintain spacing from enclosure walls, wireways, adjacent equipment,
etc. Allow 50 mm (2 in.) of space on all sides for adequate ventilation,
as shown below:

Panel Mounting

Mount the module to a panel using two screws per module. Use M4 or
#8 panhead screws. Mounting screws are required on every module.

Panel Mounting Using the Dimensional Template
