Appendix F: Configuring Your 1769sc-IF8U Module for CompactLogix Controllers in RSLogix 5000
109

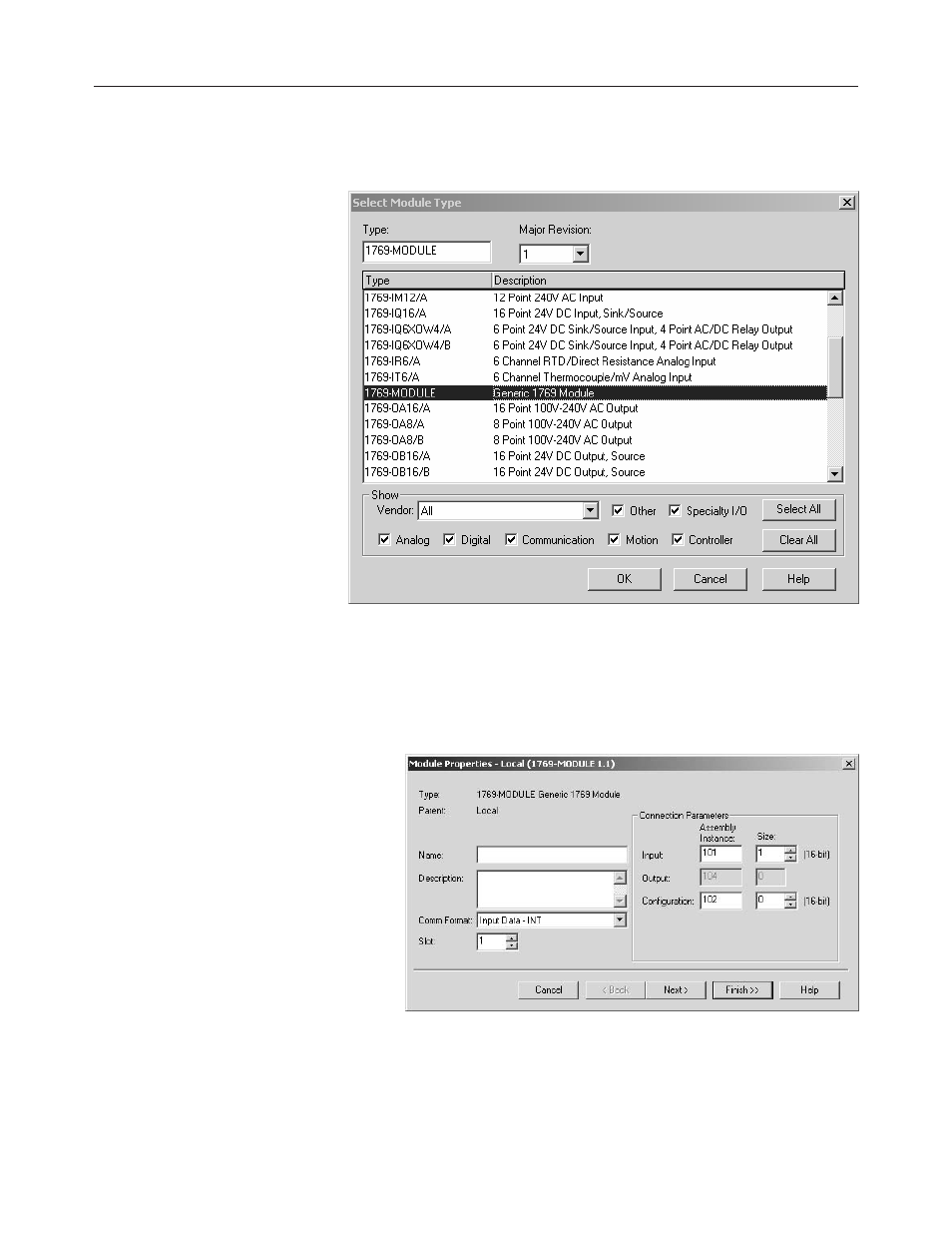

This screen is used to narrow your search for I/O modules to configure
into your system. With the initial release of the CompactLogix5320
controller, this screen only includes the “Generic 1769 Module”. Click the
OK button and the following default Generic Profile screen appears:
First, select the Comm Format (“Input Data – INT” for the 1769sc-IF8U),
then fill in the name field. For this example, “IF8U” is used to help identify
