102 Compact IO ™ Universal Input Module

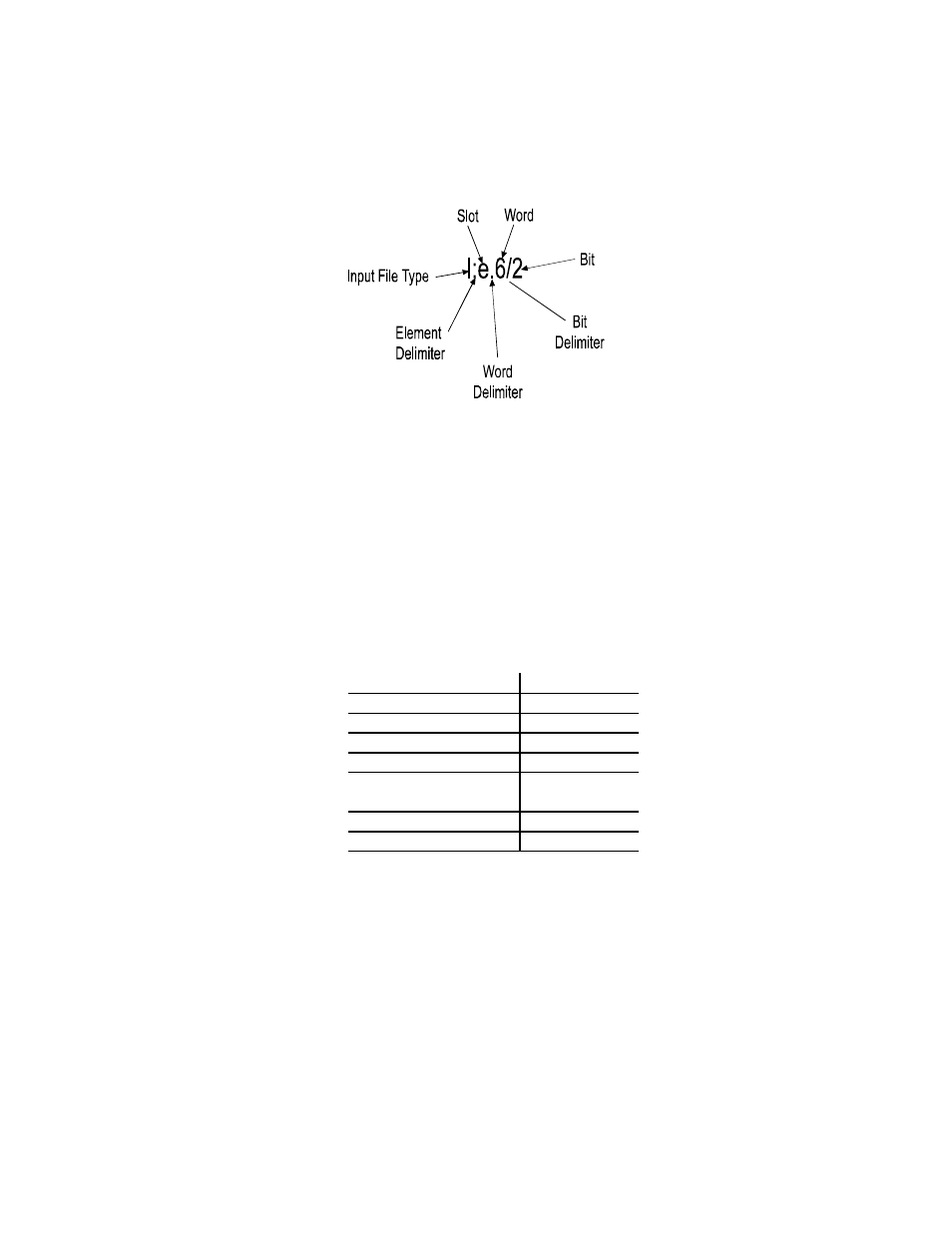

For example, to obtain the general status of channel 2 of the module
located in slot e, use address I:e.6/2.
NOTE The end cap does not use a slot address.
1769sc-IF8U Configuration File
The configuration file contains information you use to define the way a
specific channel functions. The configuration file is explained in more
detail in Configuring Channels in chapter 4.
The configuration file is modified using the programming software
configuration screen. For an example of module configuration using
RSLogix 500, see Configuring the 1769sc-IF8U in a MicroLogix 1500
System.
Parameter Default Setting
Disable/Enable Channel Enabled
Filter Frequency 60 Hz
Open Circuit Upscale
Input Range 4 to 20 mA
Data Format
Engineering
Units X1
Cyclic Lead Comp. Enabled
4 Wire RTD Disabled
