Optical Mark Recognition (OMR) • 5
5-27 SV40221 Rev. C
Setting the Selective Feed Scanner Position
This scanner is used to scan the Prime Sheet/Set controlling
selectively fed Sheets when using Z and Single Fold ONLY.
Remove Sheet Feeder D.
Ascertain which scanner (top or bottom) needs to be set for the
application being run. As the sheets are loaded face down, OMR
marks on the front face use the bottom scanner and marks on the
reverse face use the top scanner.
Loosen the locking screw and align the Indicator with the
measurement (X) you made on page 5-22.
Retighten the locking screw.

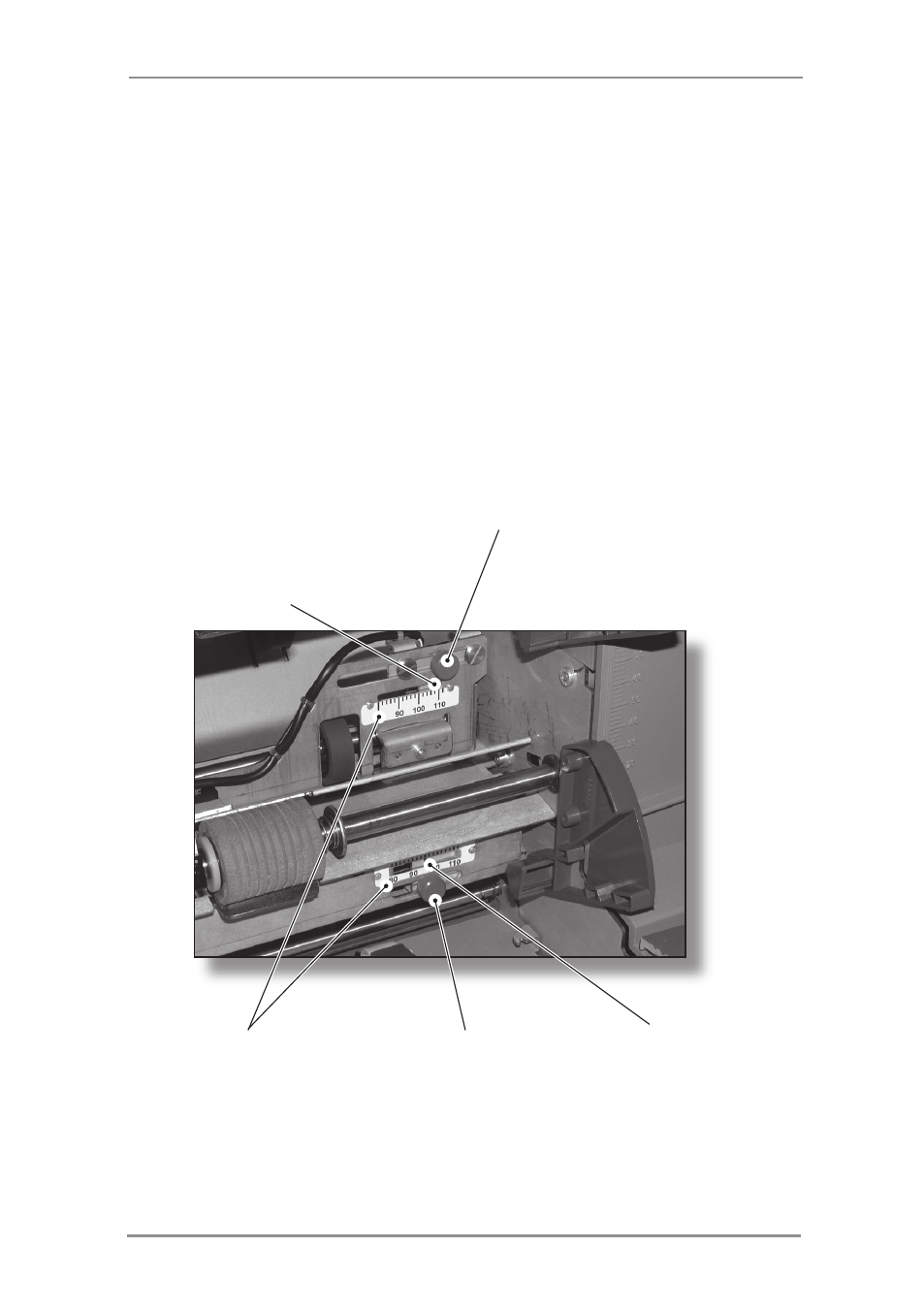

Top Scanner
Locking Screw
Adjustment
Scale
Indicator
Indicator
Bottom Scanner
Locking Screw
