Troubleshooting • 6
6-9 SV40221 Rev. C

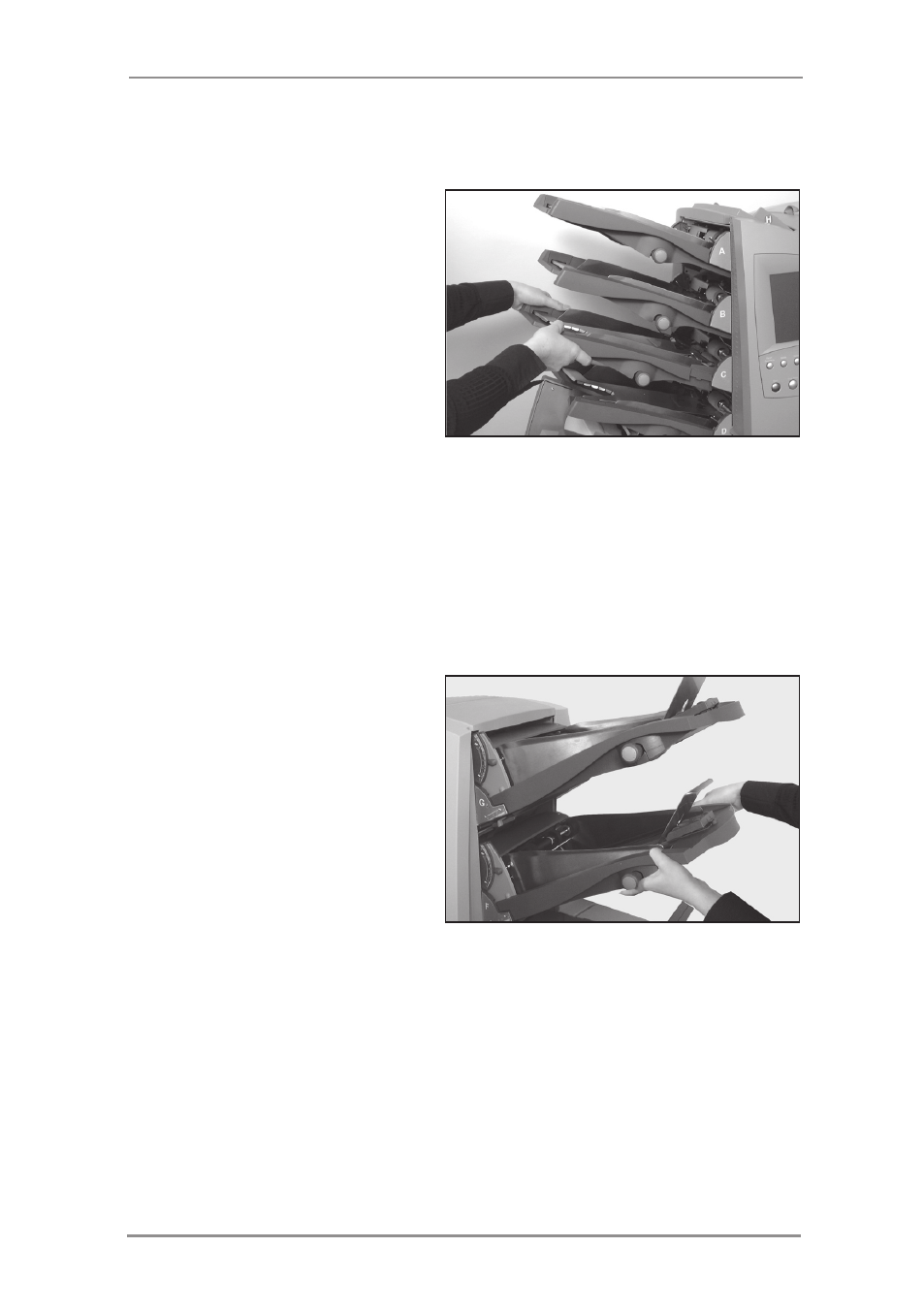

Removal & Replacement
of the Sheet Feeder Trays
A to D
To remove…
Lift the rear of the tray slightly
and pull it straight outwards
from the machine.
Note: If the tray is loaded,
gently hold the material in
place to prevent it sliding forward as the tray is removed.
To replace…
Place the tray into its location guides in the side frames. Lift the
rear of the tray slightly and push it into the machine. The tray will
automatically drop into its correct location.
Removal & Replacement
of the Insert Tray(s) F and
G
To remove…
Pull the Insert Tray straight
outwards from the machine.
To replace…
Slide the tray into its location
guides and push until it ‘clicks’ into place.
