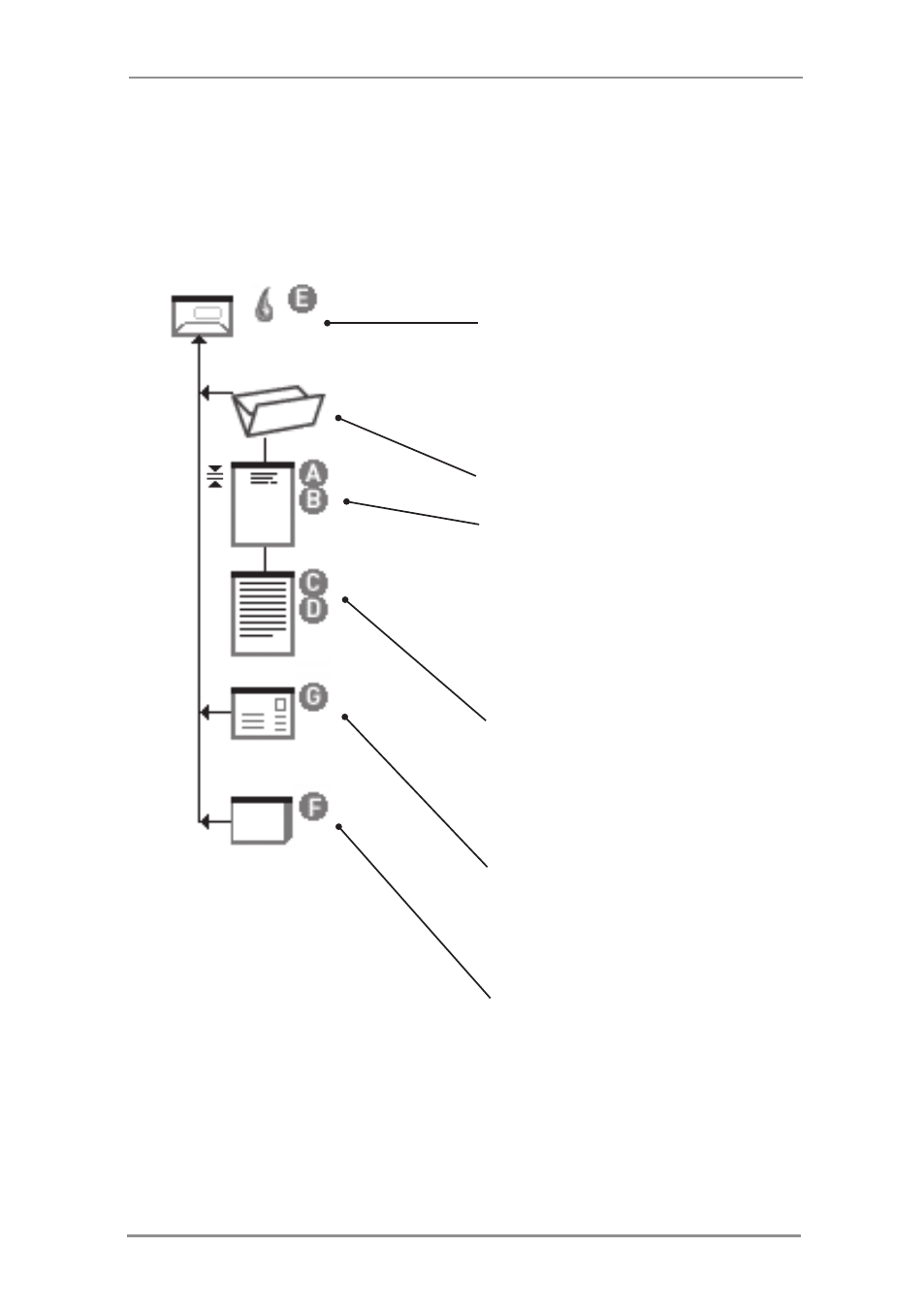

Mail Piece Icon Tree Example
An example Mail Piece Icon Tree is shown below. This explains the
information that is available and how it assists you in loading and
running a job.
Window Envelope
loaded Flap Side Up
fed Flap Last
Envelope sealing turned on
loaded into feeder E
C Fold selected
Prime Sheet with Top Address
loaded Face Up
fed Top First
loaded into feeders A and B
feeders A and B Linked
Double Detect turned on
Additional Sheet
loaded Face Up
fed Top First
loaded into feeders C and D
feeders C and D Linked
Reply Envelope
loaded Flap Side Down
fed Flap First
loaded into feeder G
Booklet
loaded Face Up
fed Bound Edge First
loaded into feeder F
