5 • Optical Mark Recognition (OMR)
5-10 SV40221 Rev. C
3/4”
(20mm)
min
4-3/4”
(107mm) max
2-3/8”
(59mm)
min
1-3/16”
(30mm)
min
1/8” (3mm) min 1/8” (3mm) min
LEADING EDGE
6-1/2” (165mm) min to 9” (229mm) max

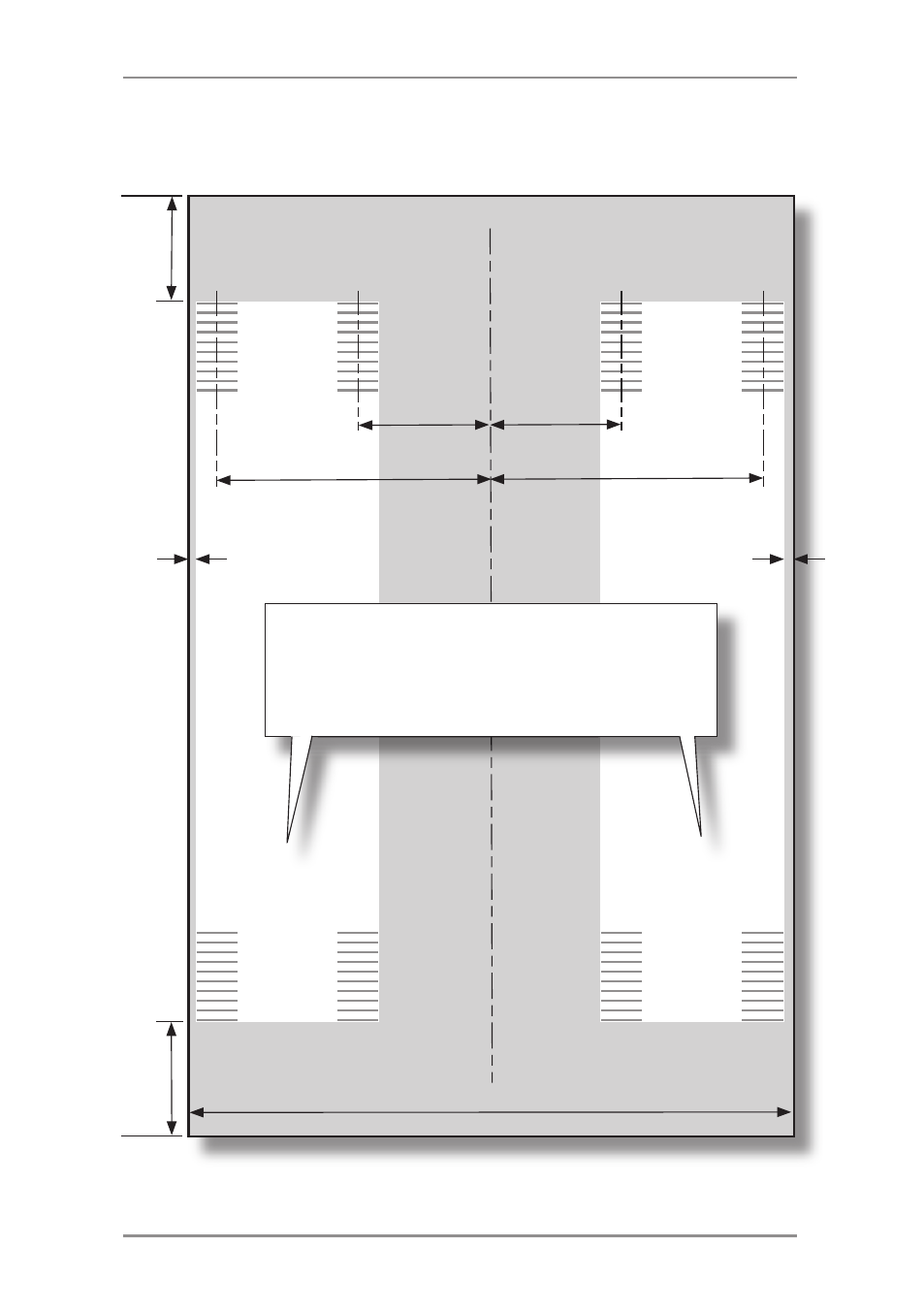

Sheet OMR Code positions EXCEPT for the special Prime
Sheet/Set application shown on page 5-11.
The white areas indicate possible locations
where OMR marks can be printed. This depends
on the physical positions of the scanners fitted to
the machine and the face of the sheet on which
the OMR marks are printed.
NOTE: A Clear Zone as specified on page 5-9 must be allowed
around the OMR marks.
2-3/8”
(59mm)
min
4-3/4”
(107mm) max
