Menu Operating Instructions
P a r r I n s t r u m e n t C o m p a n y 48

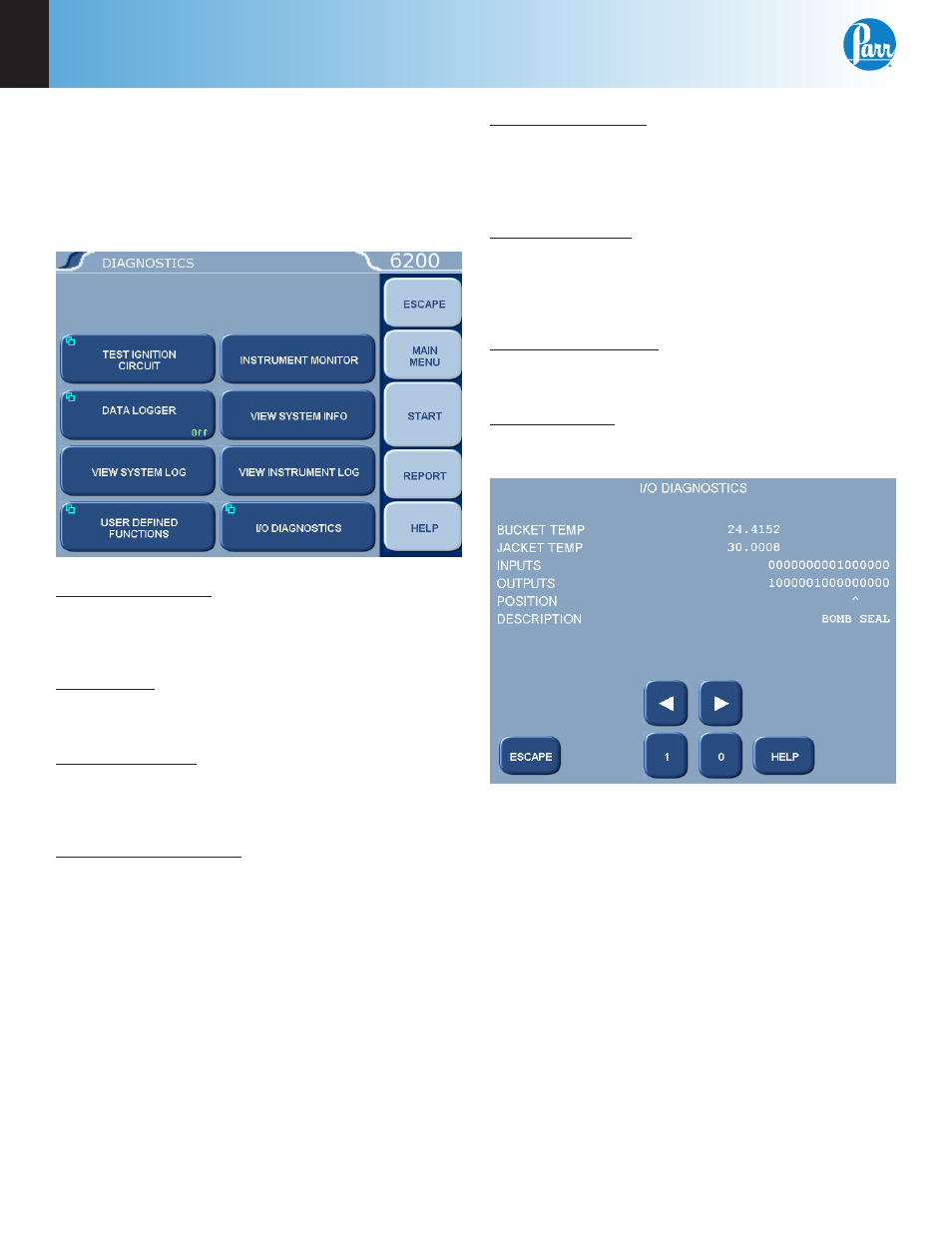

Diagnostics Menu
Allows the user to test many of the components and
subsystems of the calorimeter. These capabilities
must be used in conjunction with the Maintenance
Instructions to obtain the maximum benefits from
these capabilities.
Test Ignition Circuit: The key activates the ignition
circuit. A volt meter can be placed across the
ignition leads to ensure that the actual firing charge
is reaching these contacts.
Data Logger: This key displays and leads to sub-
menus which control the data logging function of
the calorimeter.
View System Log: This key is used to display
the contents of /flash/log/messages. This file is
used primarily to log application program debug
messages.
User Defined Functions: This key leads to a sub-
menu that offers five special purpose user/factory
definable function keys.
Instrument Monitor: This screen provides a
summary of important instrument parameters. The
monitor is used to detail the course of a test or to
observe the heating/cooling performance of the
calorimeter.
View System Info: This key accesses current
program information and settings such as:
Processes and their associated PIDs (proportional
(P), the integral (I), and the derivative (D) controls),
memory, mass storage, network.
View Instrument Log: This screen displays the
contents of tmp/instlog. This file, among other
things, is the logfile destination for the data logger.
I/O Diagnostics: This key accesses a sub-menu
which allows the user to manipulate digital outputs
for troubleshooting.
