Delta Electronics AC Motor Drives VFD-XXXE User Manual
Page 8
English- 8

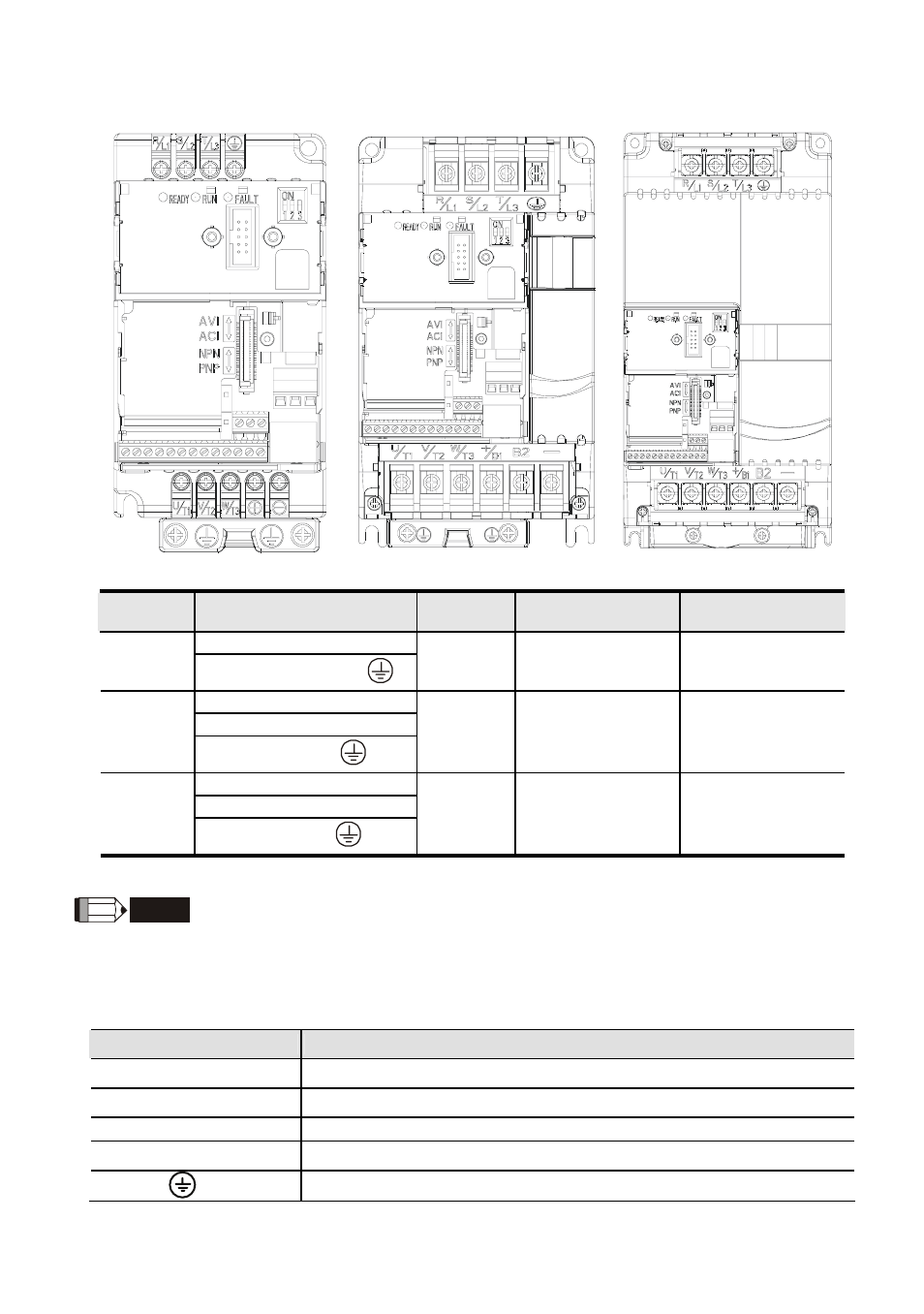

Power Terminals and Control Terminals
Frame A
Frame B
Frame C
Frame
Power Terminals
Torque
Wire
Wire Type
R/L1, S/L2, T/L3
A
U/T1, V/T2, W/T3,
14kgf-cm
(12in-lbf)
12-14 AWG.
(3.3-2.1mm
2
)
Copper only, 75
o
C
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
B
+/B1, B2, -,
18kgf-cm
(15.6in-lbf)
8-18 AWG.
(8.4-0.8mm
2
)
Copper only, 75
o
C
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
C
+/B1, B2, -
30kgf-cm
(26in-lbf)
8-16 AWG.
(8.4-1.3mm
2
)
Copper only, 75
o
C
NOTE
For frame C: To connect 6 AWG (13.3 mm
2
) wires, use Recognized Ring Terminals
Terminal Explanations
Terminal Symbol
Explanation of Terminal Function
R/L1, S/L2, T/L3
AC line input terminals (1-phase/3-phase)
U/T1, V/T2, W/T3
AC drive output terminals for connecting 3-phase induction motor
+/B1~ B2
Connections for Brake resistor (optional)
+/B1, -
Connections for External Brake unit (BUE series)
Earth connection, please comply with local regulations.
