Delta Electronics AC Motor Drives VFD-XXXE User Manual

Page 7

background image

English- 7

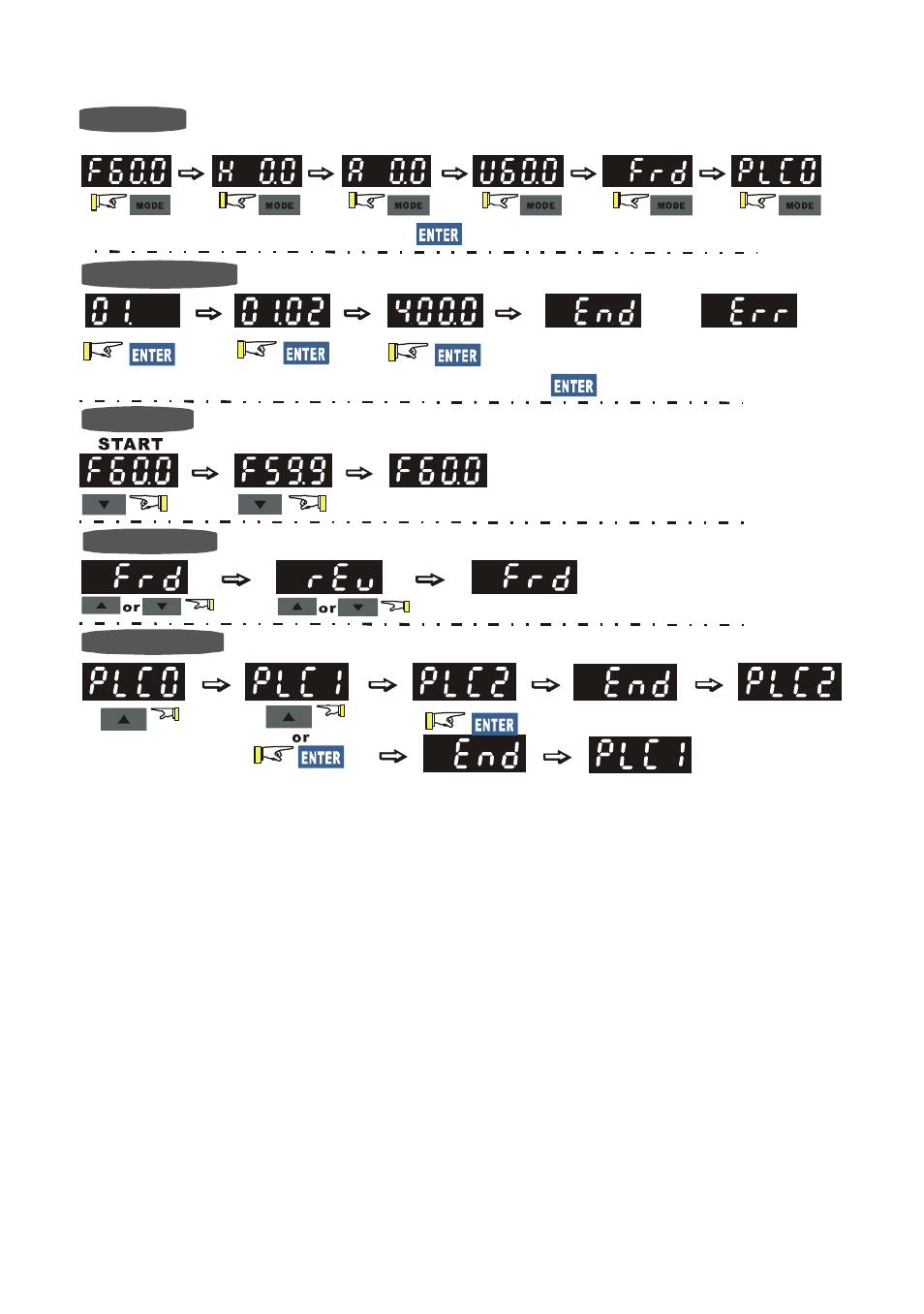

Operation Steps of the Digital Keypad

To shift data

Setting PLC Mode

Setting Mode

Setting direction

(When operation source is digital keypad)

START

GO START

enter PLC2 mode

enter PLC1 mode

NOTE：In the parameter setting mode, you can press

to return the selecting mode.

NOTE: In the selection mode, press

to set the parameters.

Setting parameters

Success to

set parameter.

Input data error

or
