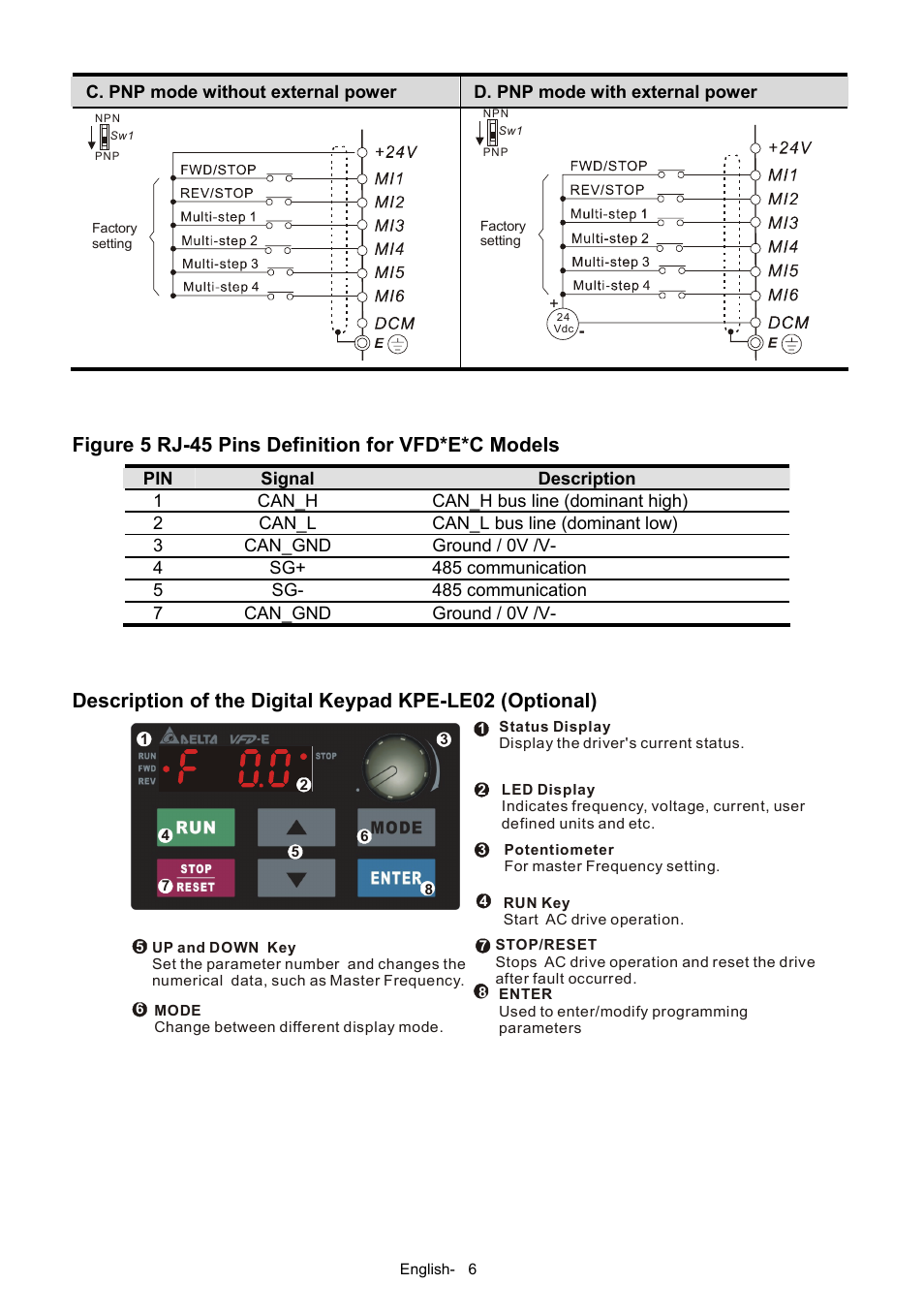

Figure 5 rj-45 pins definition for vfd*e*c models – Delta Electronics AC Motor Drives VFD-XXXE User Manual
Page 6
