www. hannainst .com 12 Product Diagram
Guide to
Indicators

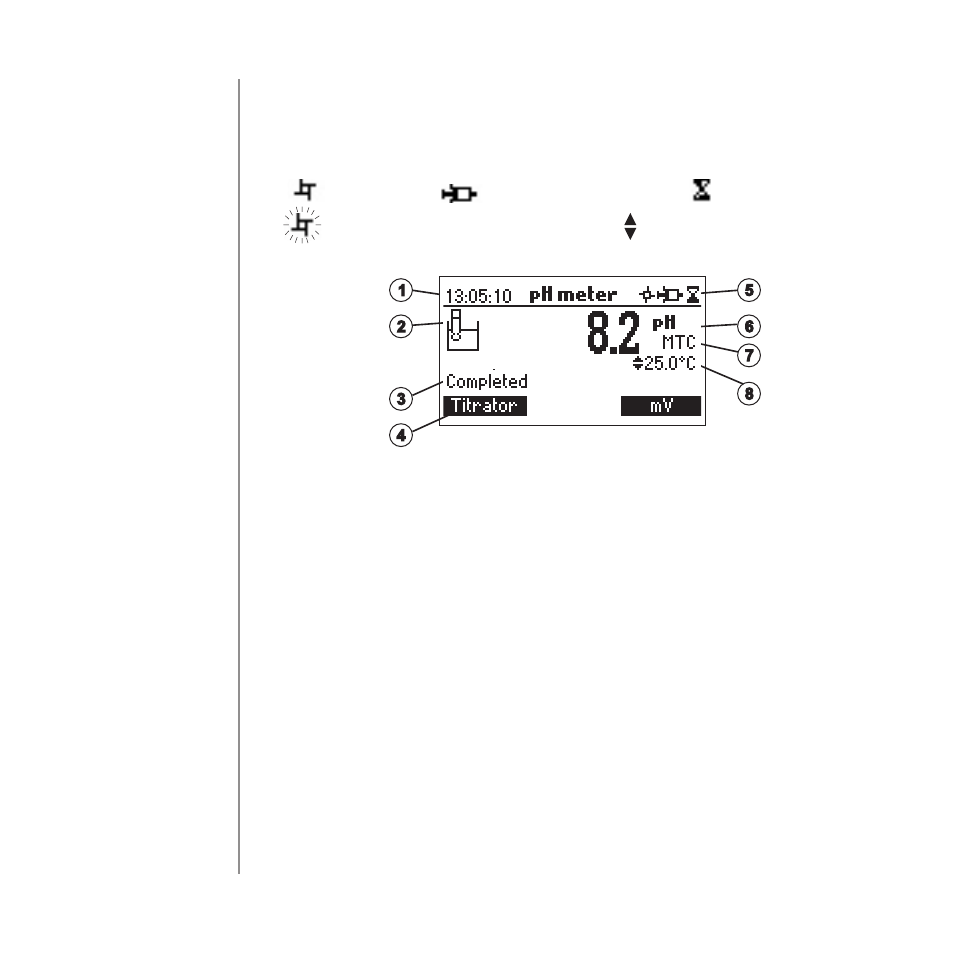

During the instrument’s operation a set of information are displayed on
the LCD. Displayed icons:
Stirrer on Pump running Unstable reading
Stirrer is not working properly Parameter can be modified
1. Current time and instrument mode
information (pH meter or Titrator)
2. Procedural Indicators
3. Instrument status
4. Virtual option keys
5. Stirrer and reading status
6. Main reading information
7. pH temperature compensation
mode (Manual or Automatic)
8. Temperature reading
Note: If temperature probe is not connected, Manual Temperature Compensation
is used and MTC appears on the right side of the screen. If Automatic Temperature
Compensation is in use the ATC appears on the right side of the screen.
