4.10.4 Drawing Rounded Rectangle
 Select “Shape” in left side of screen, and then click the icon for rounded rectangle drawing
 Move cursor to the location where the first point of rounded rectangle will be drawing, press left key
of mouse and drag it to end point and release it then.
 The object’s location, width and height are movable and adjustable by mouse with left key dragging
while it’s being selected.

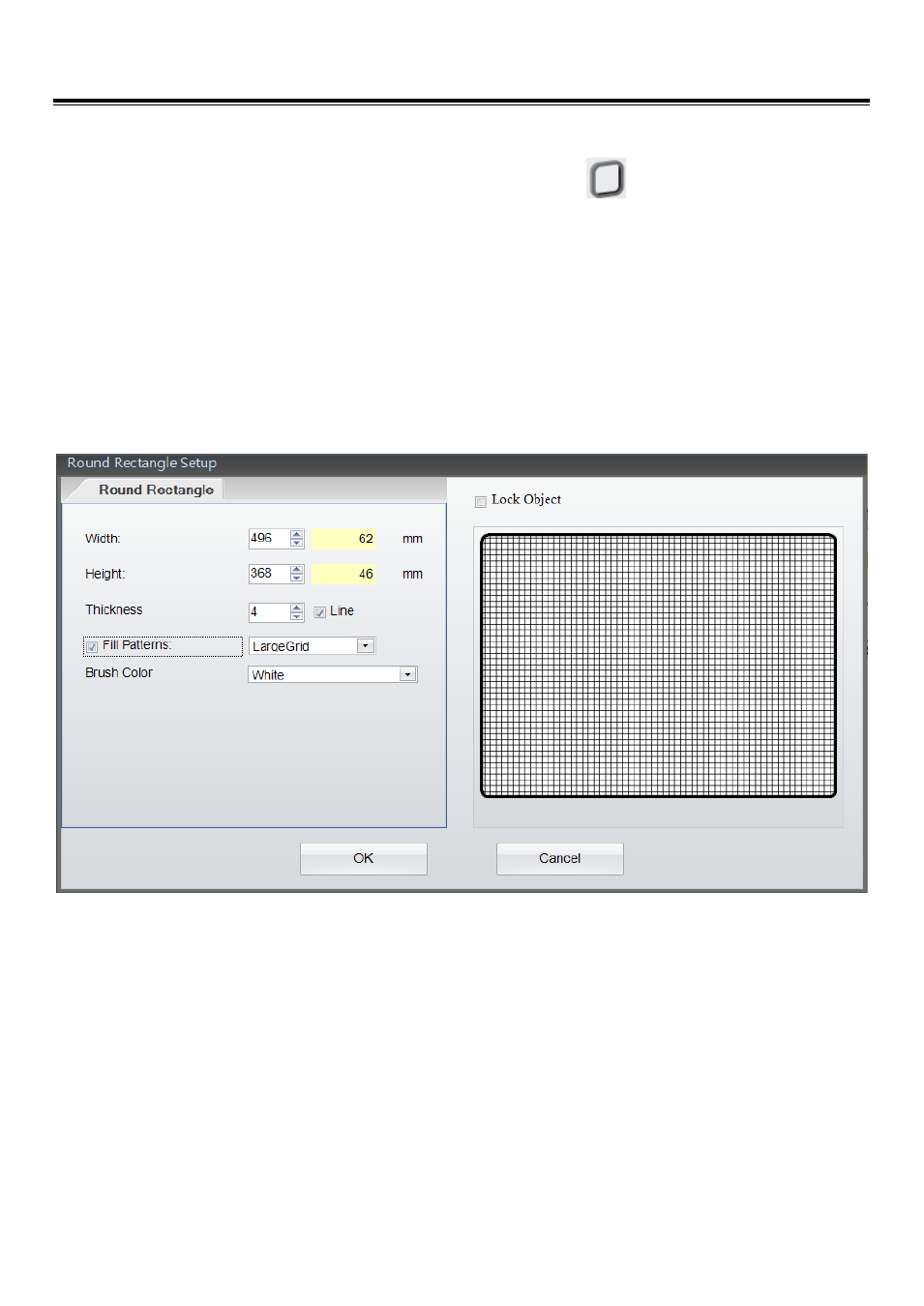

 Double click to the rounded rectangle that will pop up a “Setup” dialog for the width, height,
thickness, fill pattern and brush color editing
