Page 37
GoLabel On-line Help
37
V1.002f
4.10.3 Drawing Box or Rectangle
Select “Shape” in left side of screen, and then click the icon
for box/rectangle drawing
Move cursor to the location where the first point of box/rectangle will be drawing, press left key of
mouse and drag it to end point and release it then.
The object’s location, width and height are movable and adjustable by mouse with left key dragging
while it’s being selected.

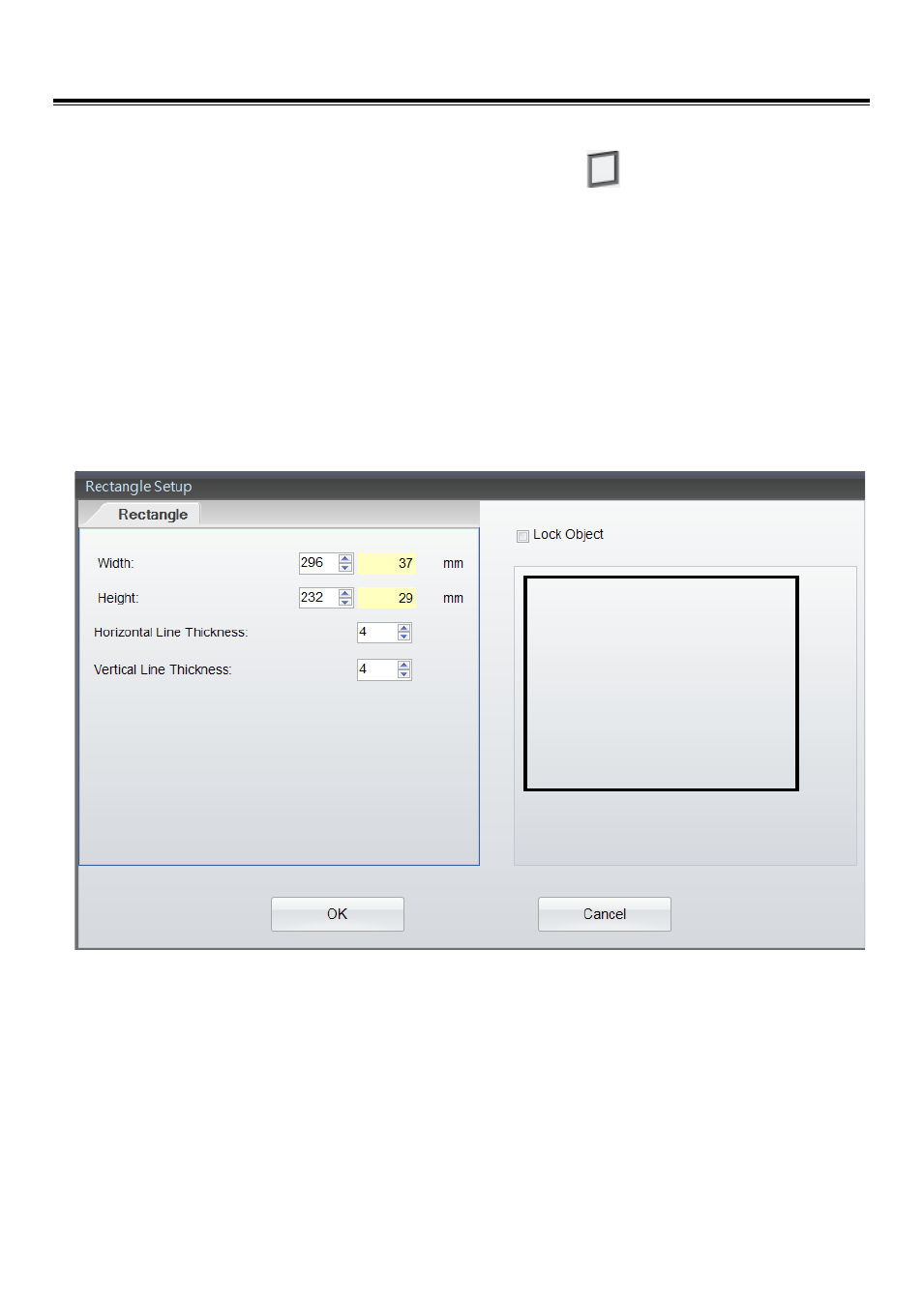

Double click to the box/rectangle that will pop up a “Setup” dialog for the width, height and
thickness editing
