Page 16
GoLabel On-line Help
16
V1.002f
4.7 Text Setup - Key in a Text into the Label
The Fonts include internal font, download font, and external Font on CF card or USB Stick Memory
Select “Text” in left side of screen, and then click the icon
.
Move cursor to where the text will be located and click left key again.

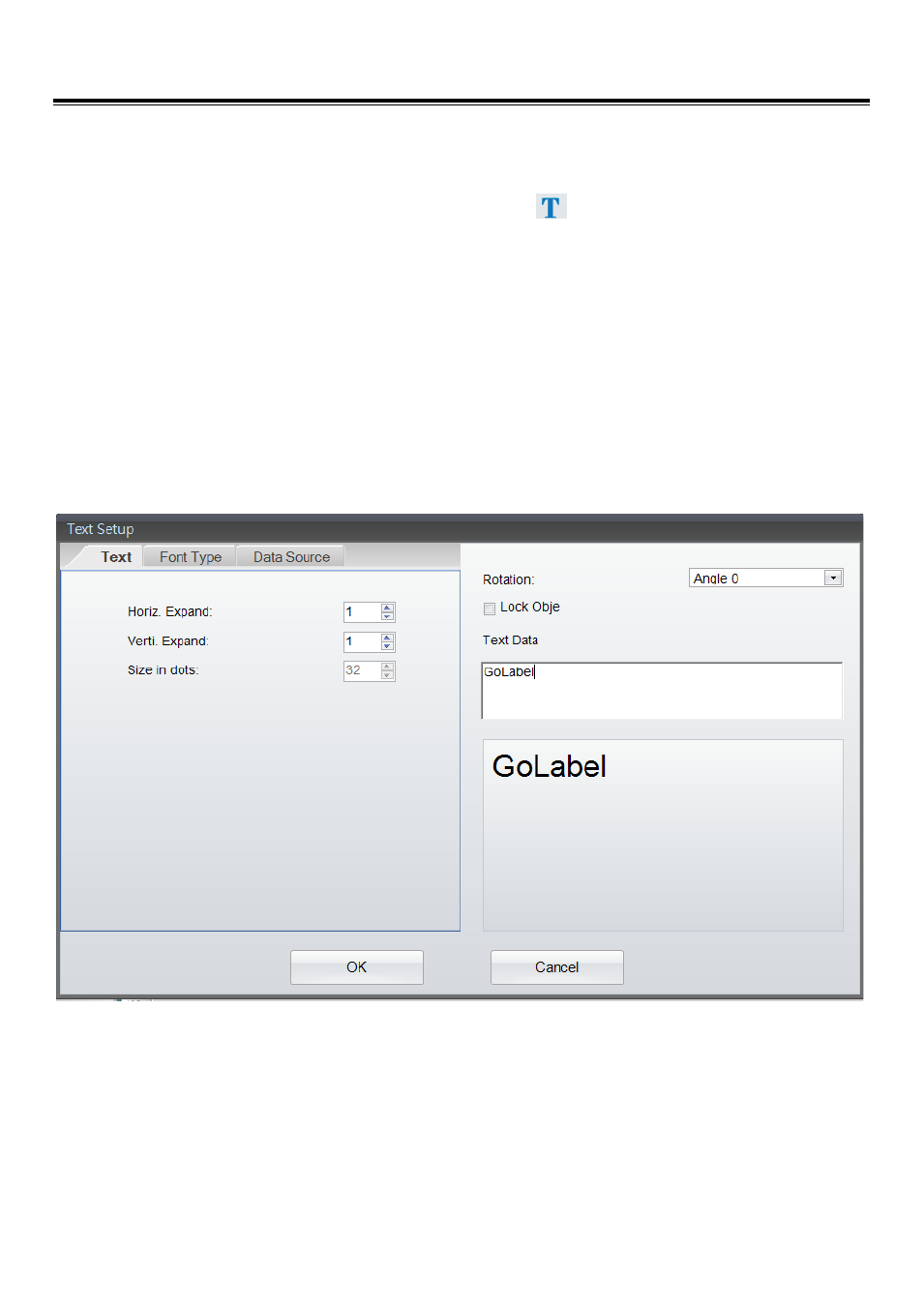

There are three icons showing on the “Text Setup” dialog, “Text”, Font Type”, “Data Source”
1) In the sub-dialog “Text”, the “Horizontal Expand”, “Vertical Expand” and “Size in Dot” are definable by
user.
In the right part, it has “Rotation” for Text angle selection, “Text Data” for text key-in and a Preview
window.
