- OPTIONAL EQUIPMENT - CALL/SEND CONTROL MOUNTING KIT

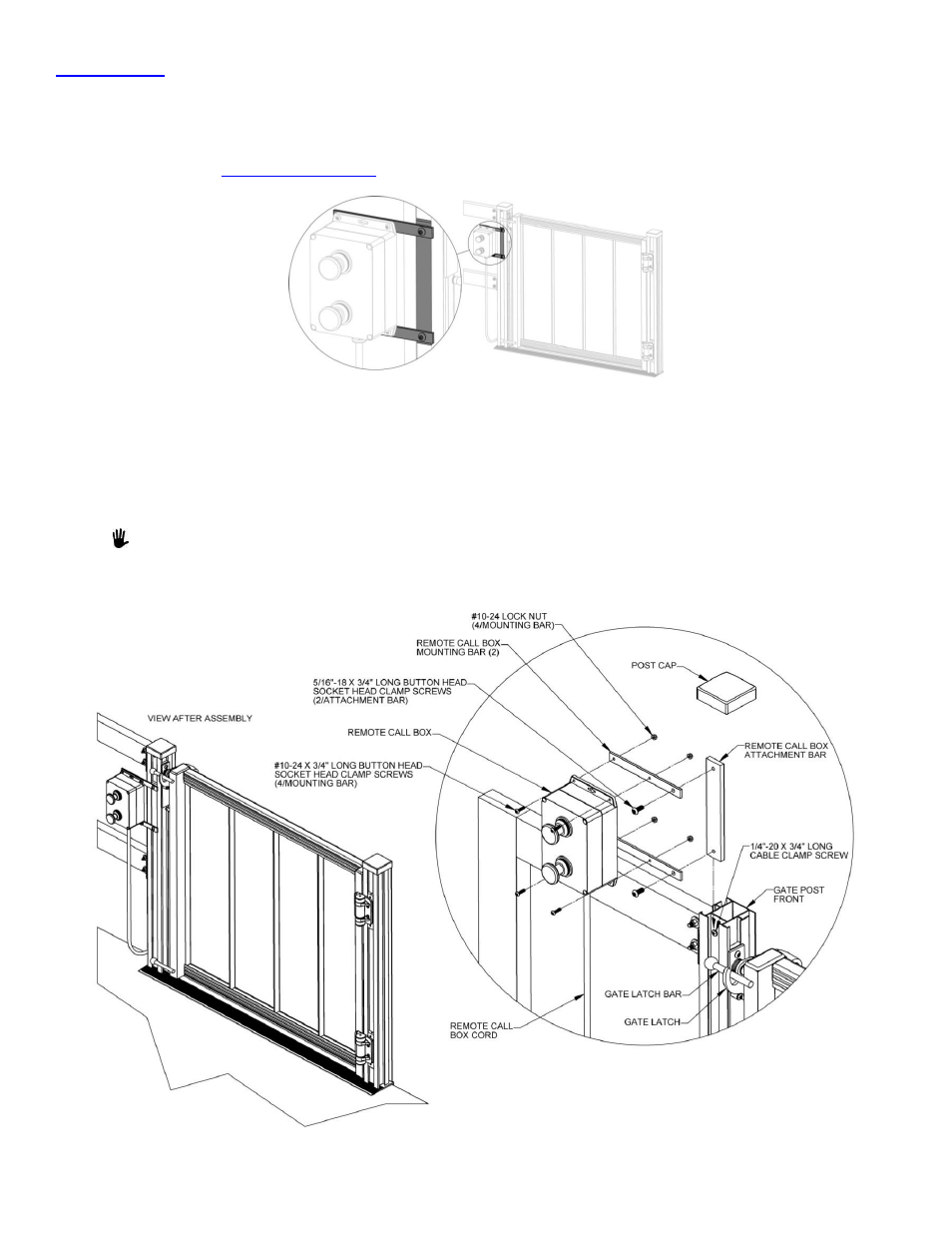

The Call/Send Control Mounting Kit (FIG. 13.1) option contains the necessary hardware to quickly attach your
Call/Send Control of your Top Landing Gate post. Multiple Call/Send Controls can be used with your VPL.
Please contact your dealer if you are interested in this, or any other option. Or call 1-800-451-190
3, or visit us online at
FIG. 13.1
INSTALLATION: OPTIONAL EQUIPMENT
– Top Landing Gate Call/Send Control Mounting Assembly
1. The Top Landing Gate Call/Send Control Mounting Assembly mounts the Call/Send Control to the Top
Landing Gate post. It includes two mounting bars, one attachment bar and the needed hardware
(FIG.13.1). The Call/Send Control is ordered separately.
The Gate Call/Send Control Mounting Assembly must be installed on the latch mounting post in the
orientation shown (extending away from the gate on the same side as the gate latch bars). It cannot
be installed on the hinge side.
FIG. 13.2
