- OPTIONAL EQUIPMENT - PLATFORM SAFETY PAN WEATHER GUARD
The Platform Safety Pan Weather Guard
option, pictured to the right, is made of durable
EPDM materials and installs quickly by simply
clipping onto the Safety Pan.

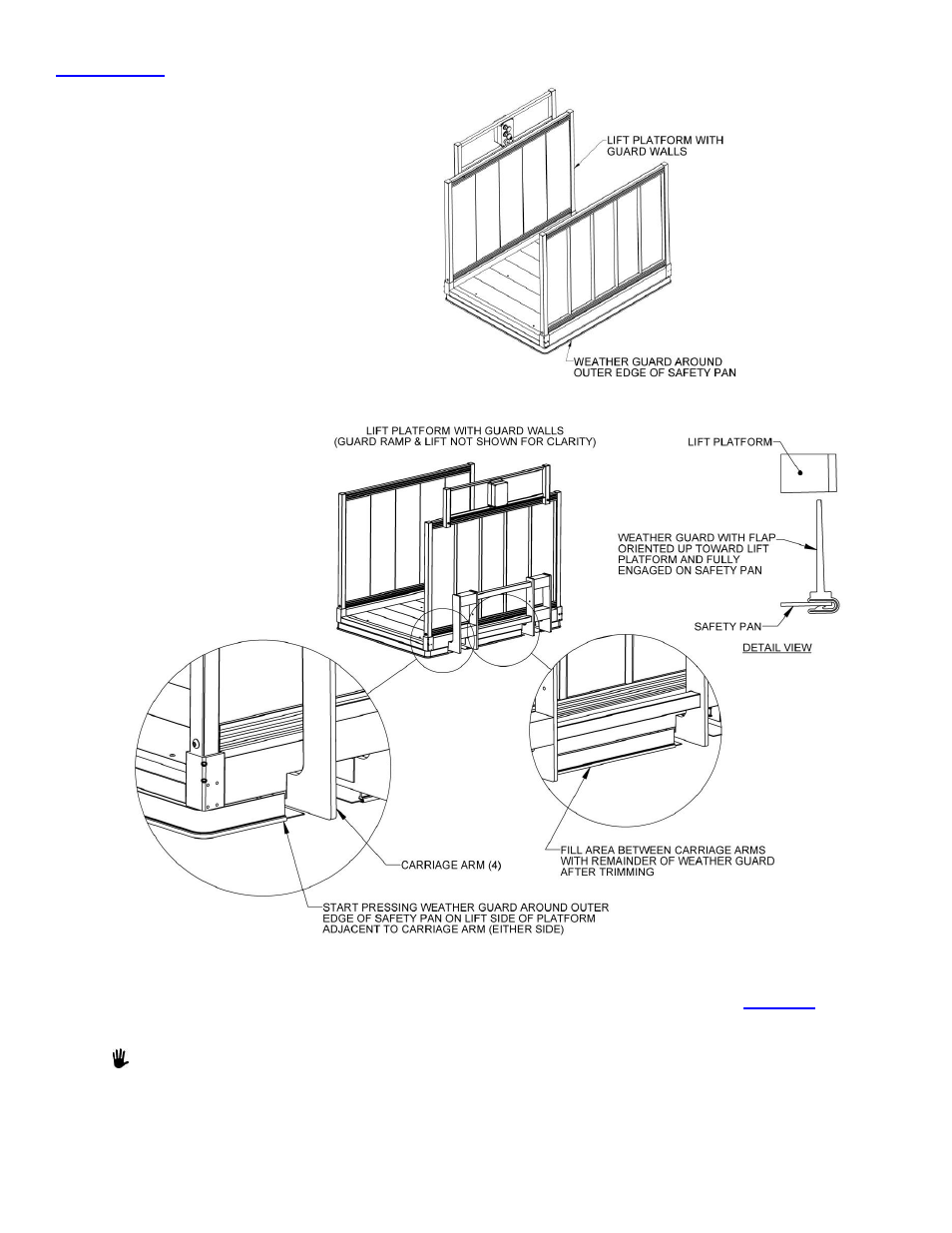

FIG. 10.1
FIG. 10.2
INSTALLATION:
1. Begin at the rear (closest to the lift) and adjacent to one of the outer carriage arms (
).
2. Orient the Platform Safety Pan Weather Guard with the flap pointing up toward the platform and firmly
press onto the outer edge of the safety pan until fully engaged.
The Platform Safety Pan Weather Guard may not hold on the safety pan unless fully engaged.
3. Continue pressing and forming the Platform Safety Pan Weather Guard around the edge of the safety
pan until it reaches the carriage arm on the opposite side and trim off the excess.
4. Use the extra piece to fill the area between the two inner carriage arms and trim as needed.
5. Run the lift up and down a few times to confirm that the Platform Safety Pan Weather Guard is not
interfering with the operation of the safety pan or contacting the legs.
