Page | 11
8. Position the guard ramp with pivot plates on the entry side of the platform and secure both pivot plates
to the platform with the 1/4”-20 x 1/2” pivot plate attachment bolts (FIG. 4.5).

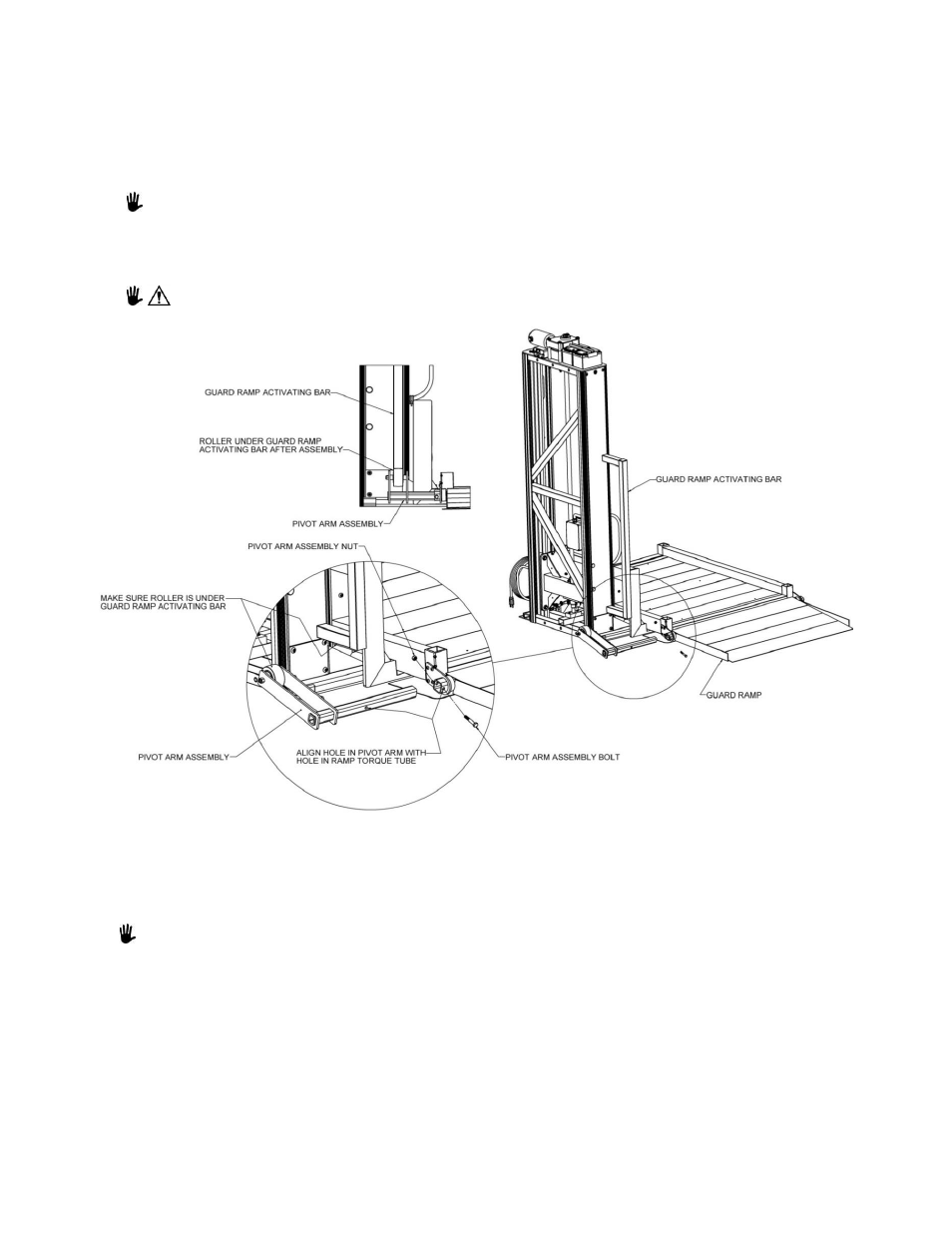

9. Install the pivot arm assembly (included in the box with the platform) by first locating the 5/16”-18 x 2”
hex bolt and locknut included in the hardware bag (FIG. 4.6).
a. Slide the pivot arm into the torque tube on the guard ramp until the bolt hole in the torque tube
aligns with the hole in the pivot arm which centers the roller under the guard ramp activating bar.
There are two bolt holes in the pivot arm. One should center the roller under the guard ramp
activating bar for the Straight Platform and the other for the 90° Turn Platform.
b. Secure with the
5/16”-18 x 2” hex bolt and locknut installed in the orientation shown.
c. Verify that the roller is positioned beneath the guard ramp activating bar.
The roller will contact activating bar when operated. Avoid pinch points!
FIG. 4.6
10. Install the guard walls with the smooth side toward inside of the platform as shown (FIG. 4.7).
a. Loosen the two set screws in each platform corner pocket as needed to fully engage the guard wall
posts and tighten all set screws securely after the guard walls are installed.
Make sure guard wall with two holes in top rail is installed closest to the tower as shown (FIG. 4.8).
