Page | 38

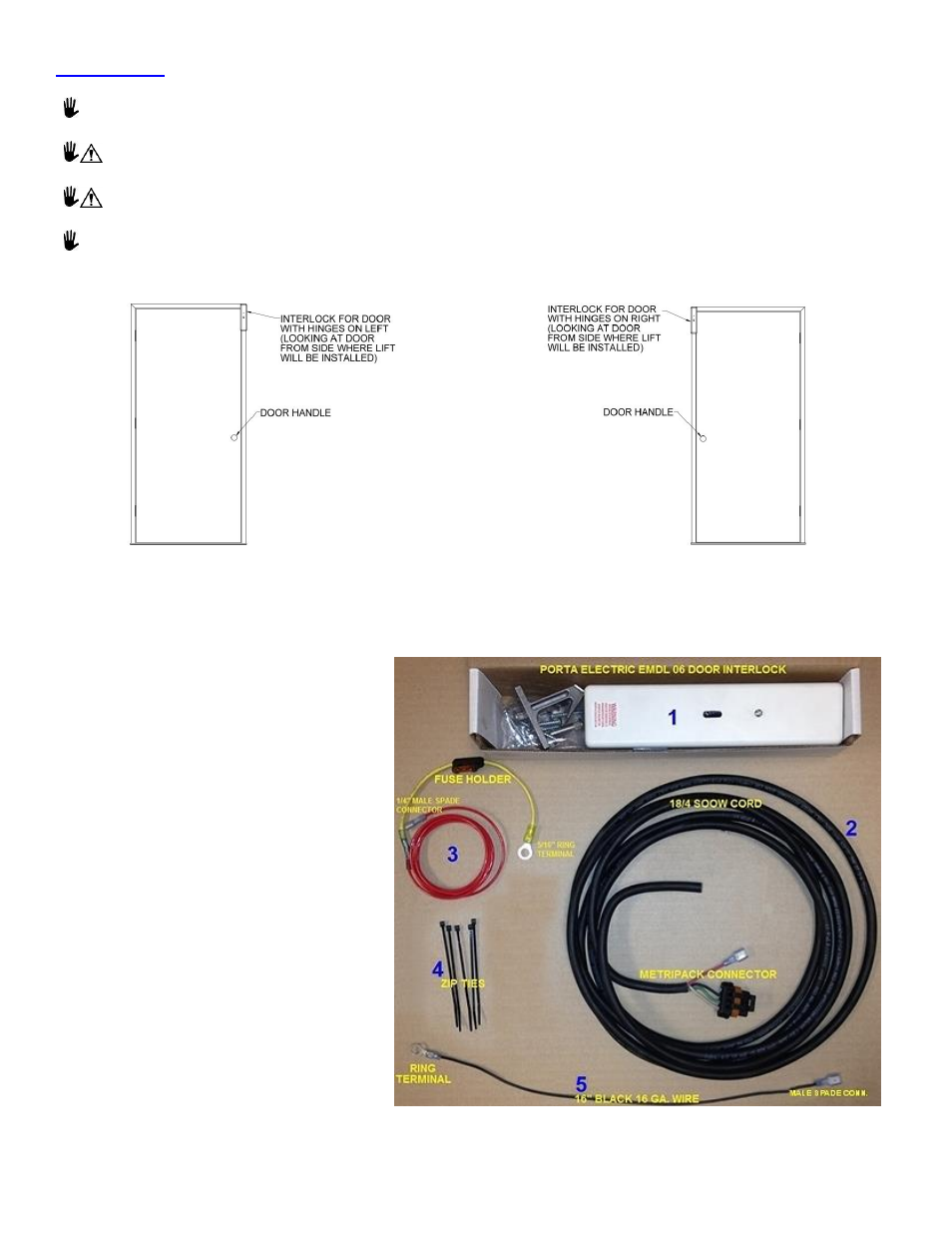

SECTION 11

- OPTIONAL EQUIPMENT - INTERLOCK

Refer to the Porta Electric Door Lock (6-position) Installation instructions that came with your Porta Electric

Door Lock for Interlock

A VPL altered to operate with an Interlock, will not operate correctly if electrically connected to a Top

Landing Gate.

When using an Interlock, the door must swing away from the lift regardless of where the hinges are

located.

Direction of door swing must be specified at the time you place your order for the optional Interlock.

Determine whether the door handle is on the left or right when looking at the door from the VPL platform
before ordering. FIG. 11.1 A & B illustrate the Right Hand and Left Hand Interlock.

FIG. 11.1A

FIG. 11.1B



INTERLOCK KIT CONTENTS:

Item Qty.

Description

1

1 ea. Porta Electric EMDL 06 door

interlock.

2

1 ea. 14 ft. of 18/4 SOOW cord with a

Metripack-150 4-pin female
connector and a ¼” male spade
connector on the red wire.

3

1 ea.

65” of red 16 gauge wire with a
16-

14 gauge ¼” female spade

connector on one end. The
opposite end has a 14-16 gauge
butt-splice joining it to a 12 gauge
inline fuse holder with five-amp
automotive-style blade fuse. The
opposite end of the fuse holder
terminates with a 12-10 gauge x
5/16” ring terminal.

4

5 ea.

4” zip tie.

5

1 ea.

16” piece of black 16 gauge wire
with a 16-

14 gauge ¼” ring

terminal on one end and a 16-14
gauge ¼” male spade connector
on the opposite end.

FIG. 11.2
