Buzzer – EXFO FTB-635 Wideband Copper and DSL Test Module User Manual
Page 80
Copper Tests: Using the Main Menu
72
FTB-635
Application Settings
Buzzer
The buzzer is always on when the module is powered, to provide audible
and visual warnings of hazardous voltages on the line under test.

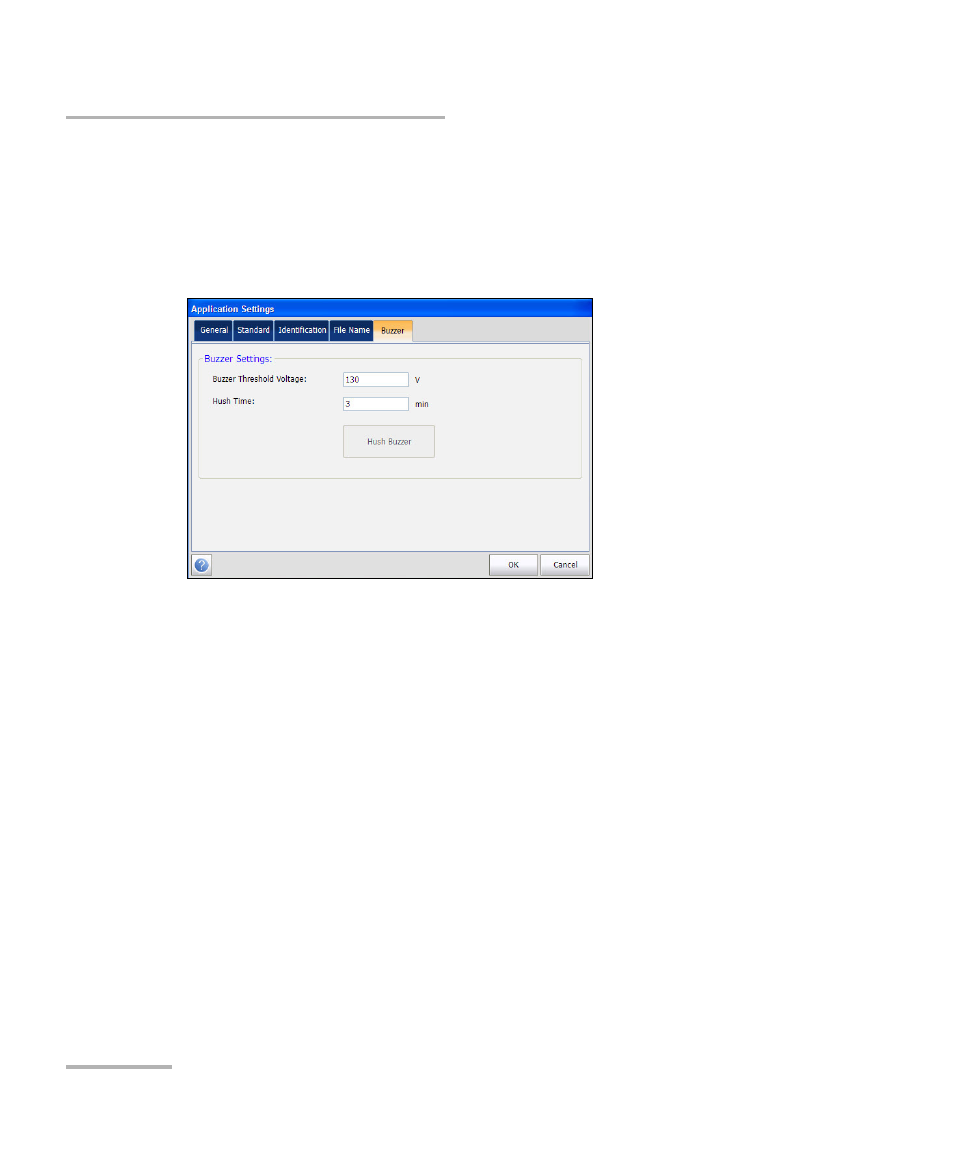

The Buzzer tab allows you to configure values for the buzzer settings.
The page allows you to set the following parameters:
Buzzer Threshold Voltage allows you to configure the hazardous
voltage level from 70 to 150 volts. Default is 80 volts.
Hush Time allows you to configure the hush timeout from
1 to 15 minutes. Default is 3 minutes.
Hush Buzzer button mutes the sounding buzzer.
