Continuous dc – EXFO FTB-635 Wideband Copper and DSL Test Module User Manual
Page 137
Multimeter Tests
Copper and xDSL Tests
129
Voltage Test

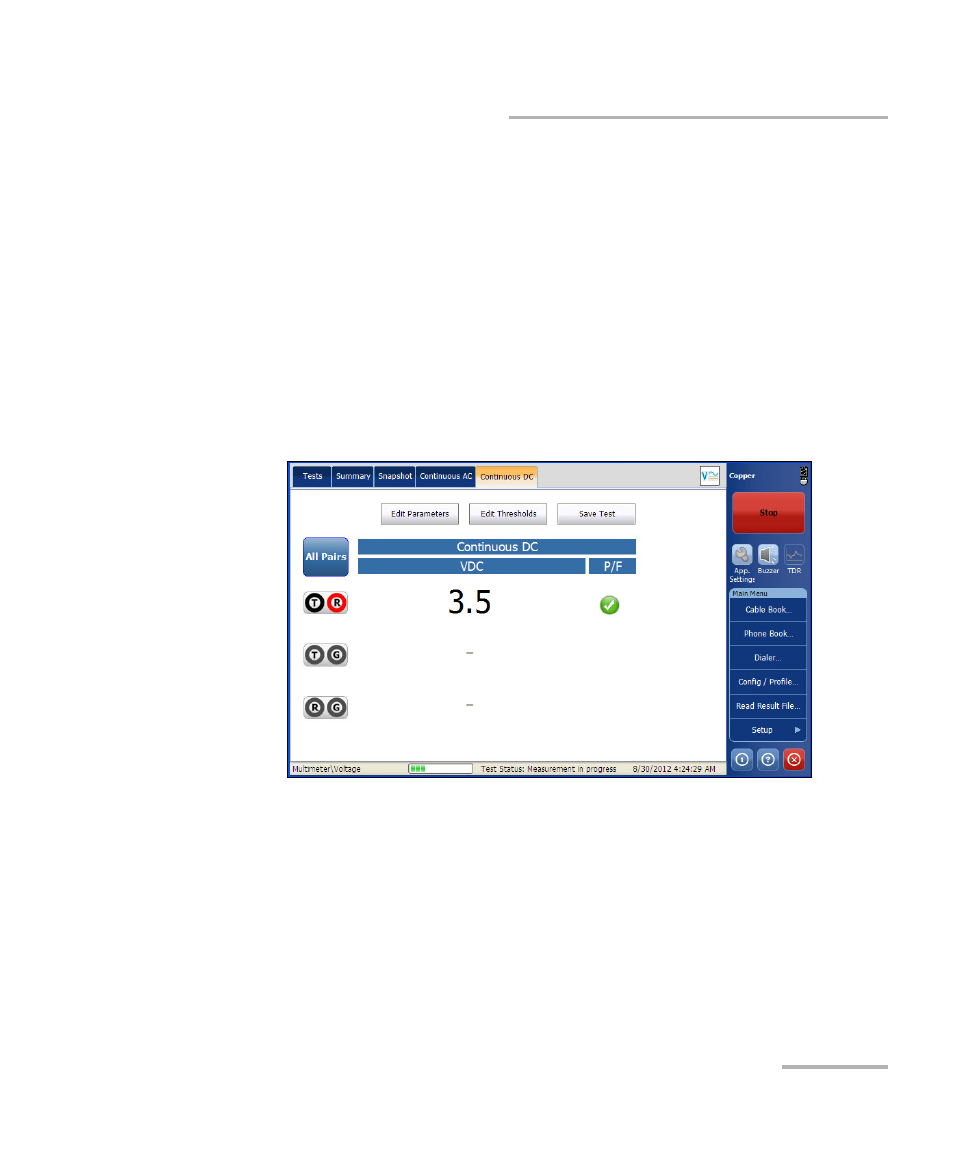

Continuous DC
The Continuous DC function measures each pair, displaying and updating
results in real time, until you stop the test. The last valid results then remain
displayed.
Continuous AC and Continuous DC are run synchronously.
To access Continuous DC page:
1. From the Copper main menu Test Groups, select Multimeter test
.
2. From the Tests menu, select Voltage test to start the test.
3. Tap Continuous DC tab to open the Continuous DC page.
The current group and the current test which is being measured is
displayed in the status bar, for example Multimeter\Voltage.
