Test Configuration
Test Configuration
The Test Configuration menu allows you to configure the line and access
modes, and thresholds of your test dependent on your unit’s software
options and model information. These parameters are accessible through
the different pane tabs.
Line Setup

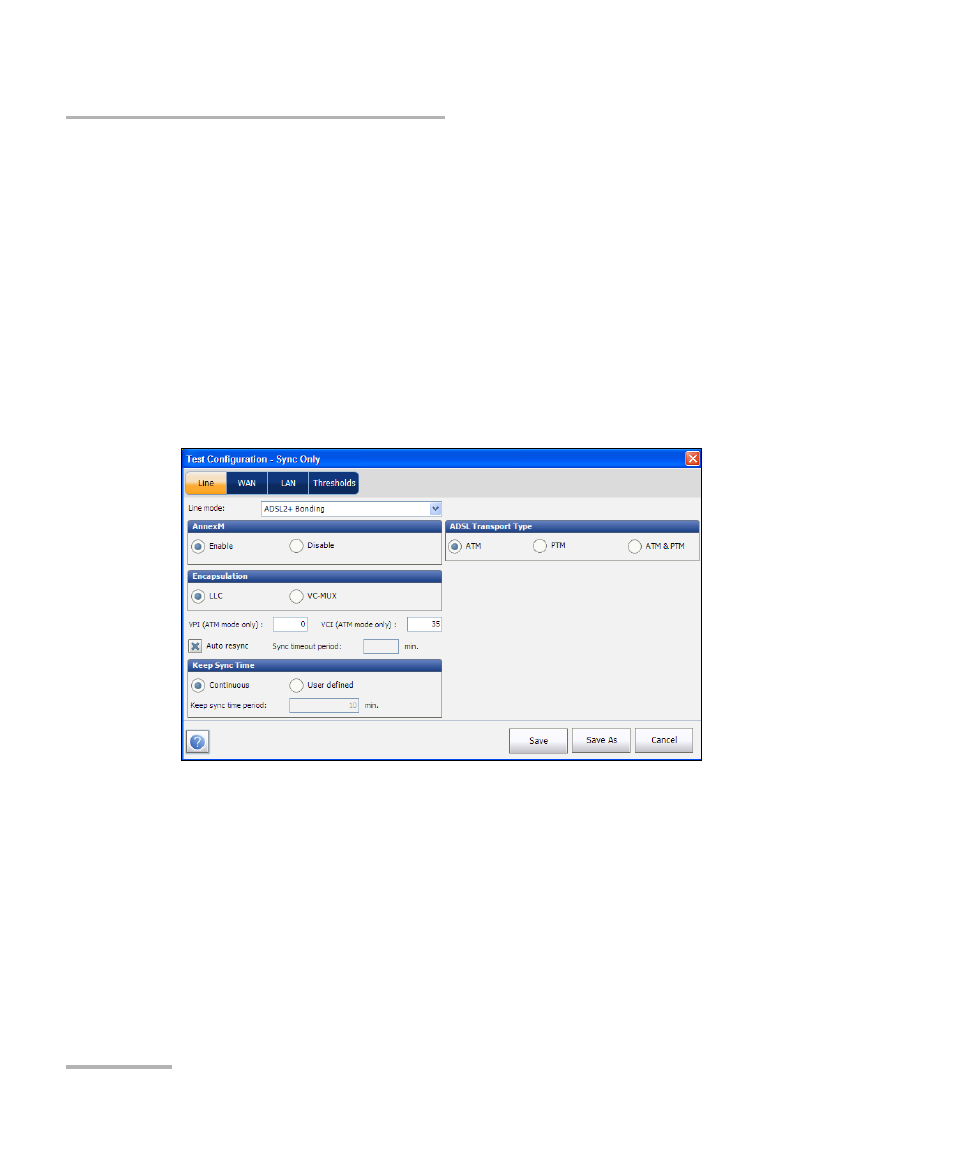

The Line tab allows you to configure the basic line mode and parameters
for an xDSL test.
The V2XAA unit only does Annex A and Bonding. Annex A is on pair 1 and
bonding uses pair 1 and pair 2. For Annex B the FTB-635-V2XAB module
version is required.
The Line mode setup options for the V2XAA module are the following:
ADSL2+ - if VDSL2MOD option disabled.
VDSL2/ADSL2+ - if VDSL2MOD option enabled
ADSLMulti supports G.DMT, T1.413, and G.Lite.
