xDSL Test Results
Copper and xDSL Tests
327
Band Information
Band Information

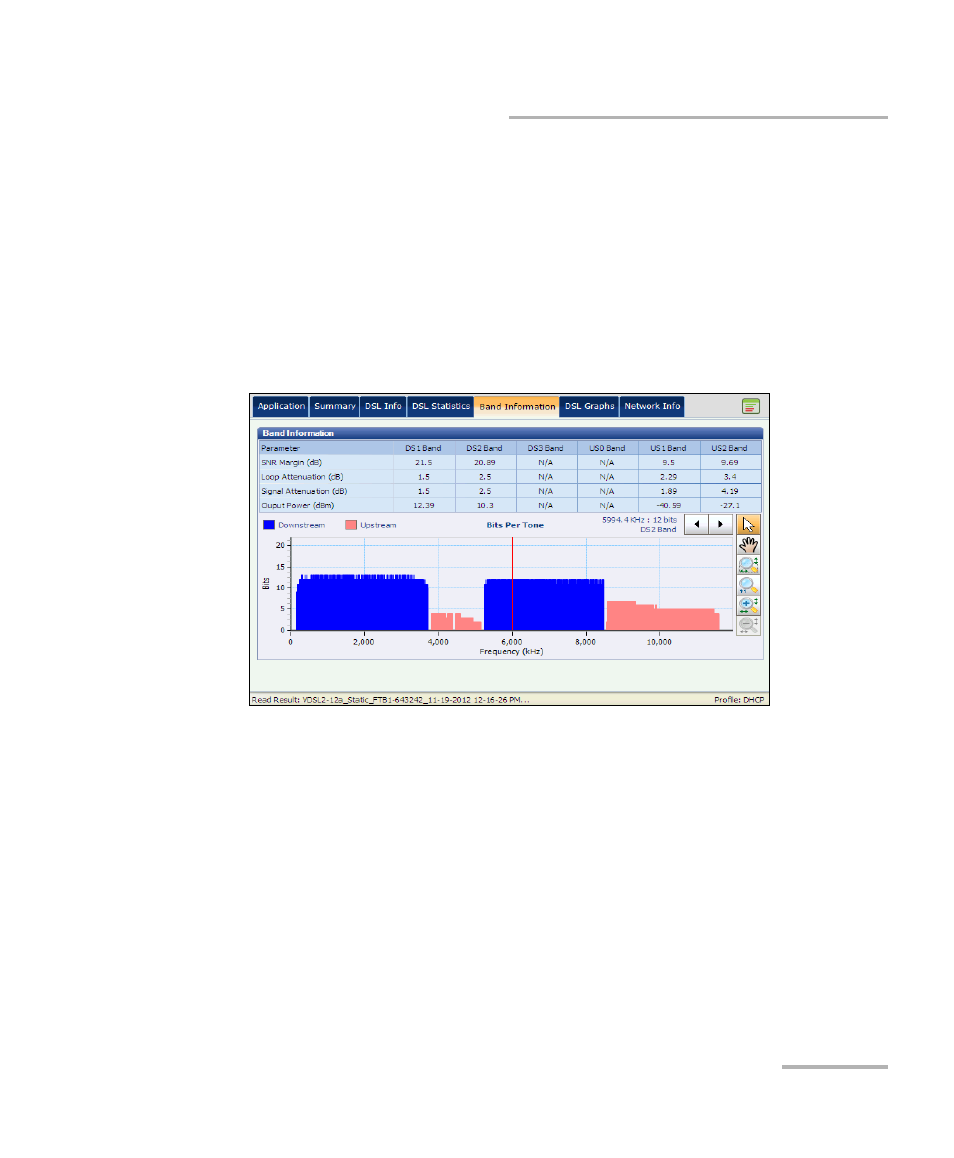

The Band Information tab allows you to view a list of individual upstream
or downstream band parameter details. The graph displays the Upstream
and Downstream Bits Per Tone which are the number of bits transmitted
on a certain Frequency (kHz).
When the Line mode is set to ADSL2+ or VDSL2 bonding mode, there will
be 2 sections of results, one for each DSL line-pair.
The page contains DS (Downstream) and US (Upstream) parameters.
ADSL lists only 1 of each.
VDSL lists US0 to 3 and DS1 to 3 possible bands, depending on the
band plan.
