14 Signal Test
The purpose of the signal tests is to perform VF (voice frequency) and WB
(Wideband) level measurements and calculate signal attenuation during
transmission.
To access Signal tests:
From the Copper main menu Test Groups, select Signal test
.

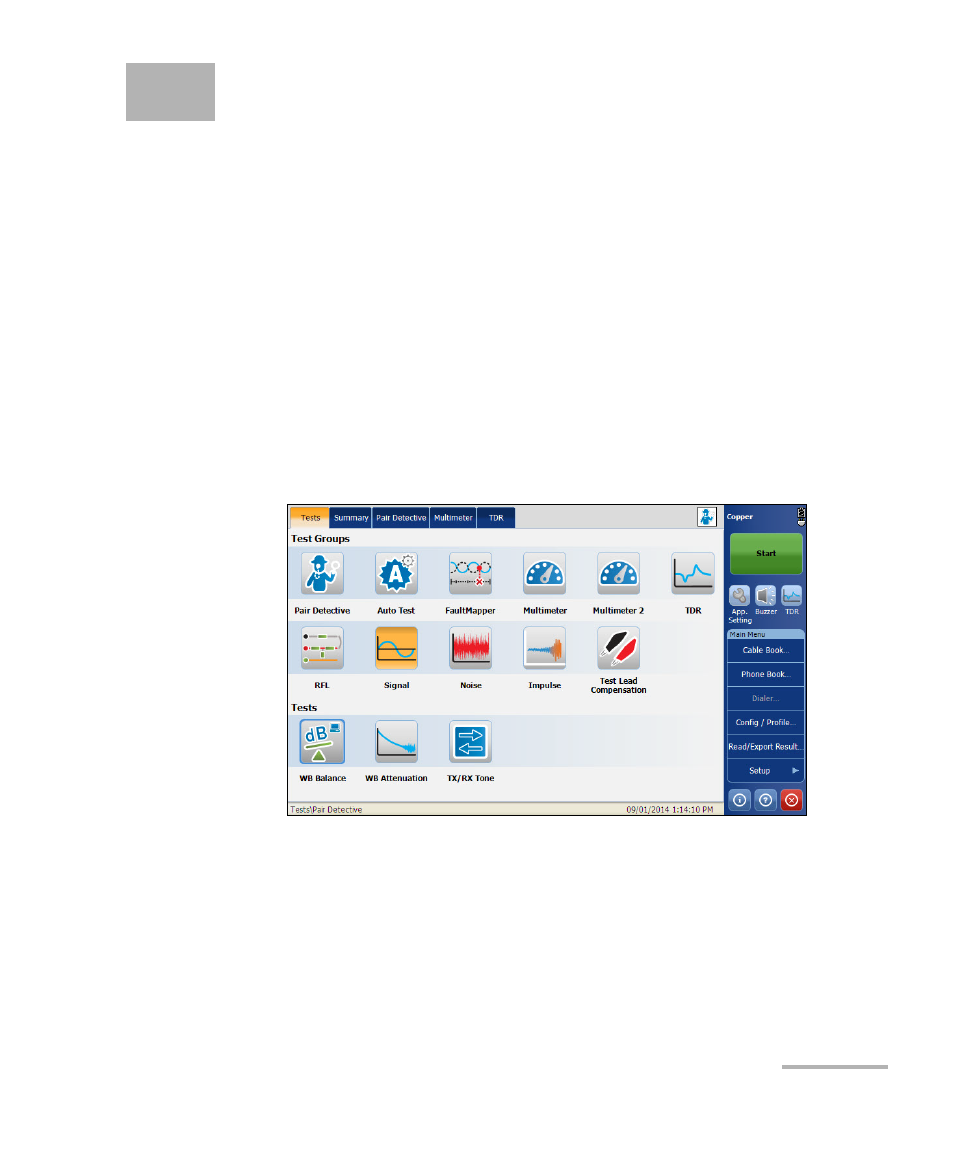

Signal Main Page
The Signal menu allows you to select and run the displayed tests:
WB Balance
WB Attenuation
TX/RX Tone
To start/stop a test:
1. From the Copper main menu Test Groups, select Signal test
.
2. From the Tests menu, select the test to run.
