Signal Test
Copper and xDSL Tests
231
TX/RX Tone Test

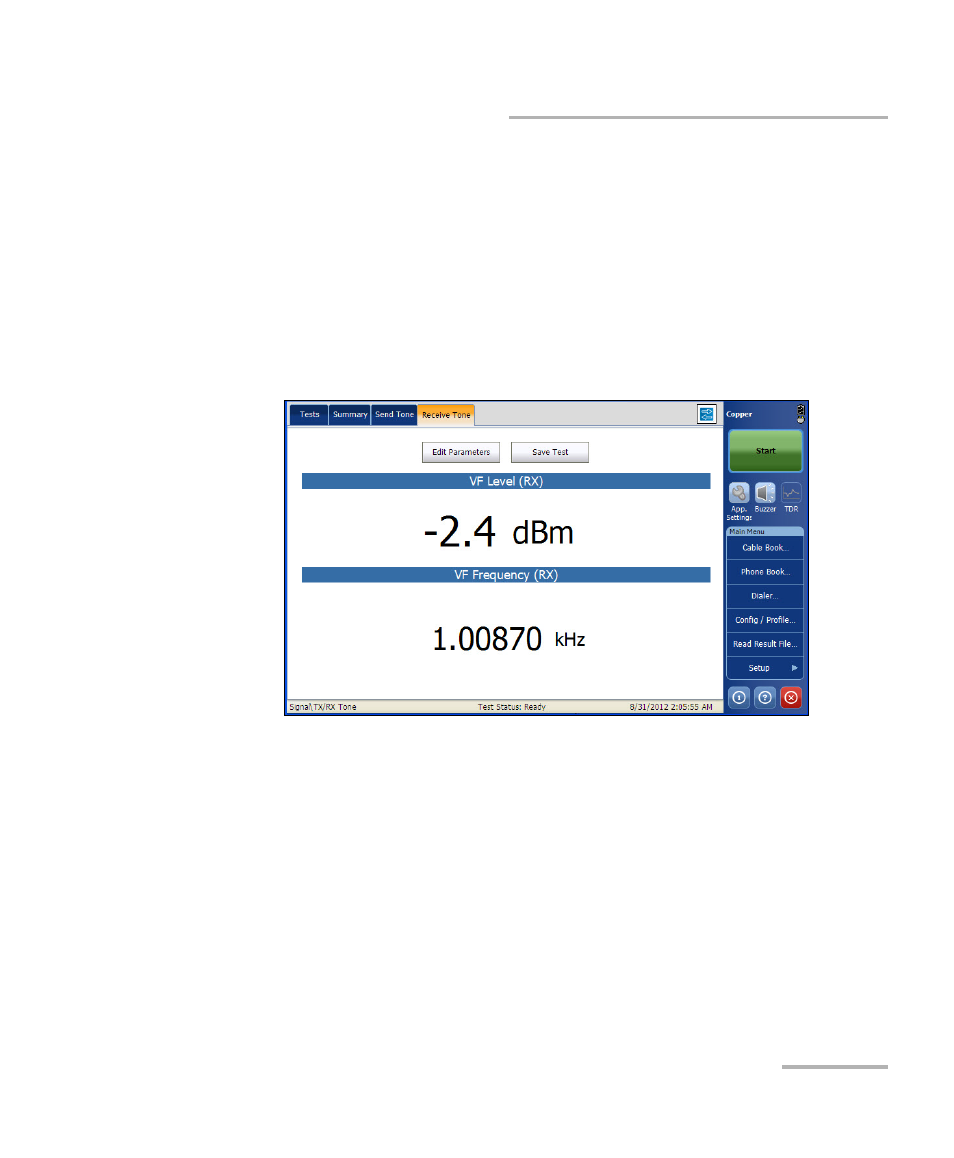

Receive Tone
The Receive Tone allows you to measure the amount of level and
frequency tone received.
To access Receive Tone page:
1. From the Copper main menu Test Groups, select Signal test
.
2. From the Tests menu, select TX/RX Tone test to start the test.
3. Select the Receive Tone tab.
The current group and the current test which is being measured is
displayed in the status bar, for example Signal\TX/RX Tone.
