Getting Started with Your Unit

FTB-2 and FTB-2 Pro

29

Inserting and Removing Test Modules

3. Take the module and place it so that the connector pins are at the

back, as explained and shown below.

The identification sticker must be on the right side and the retaining screw
hole over the connector pins.

4. Insert the protruding edges of the module into the grooves of the

receptacle’s module slot.

5. Push the module all the way to the back of the slot, until the retaining

screw makes contact with the receptacle casing.

6. Place the unit so that its left panel is facing you.

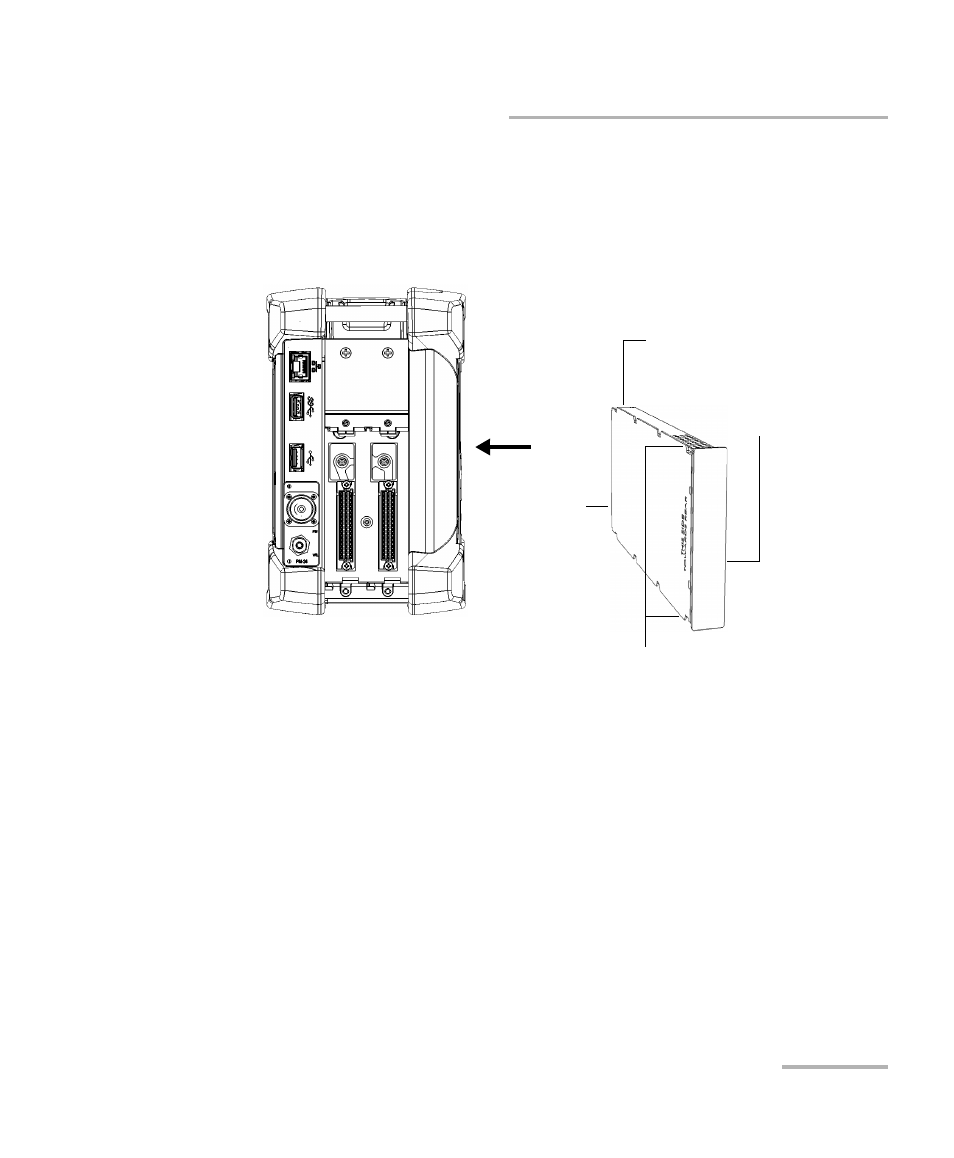

Protruding edges

on left side

Identification sticker
on right side

Connector pins

at the back

Retaining screw hole at the back

Right panel
