EXFO FTB-2 User Manual
Page 32
Getting Started with Your Unit
22
FTB-2 and FTB-2 Pro
Grounding Your Unit

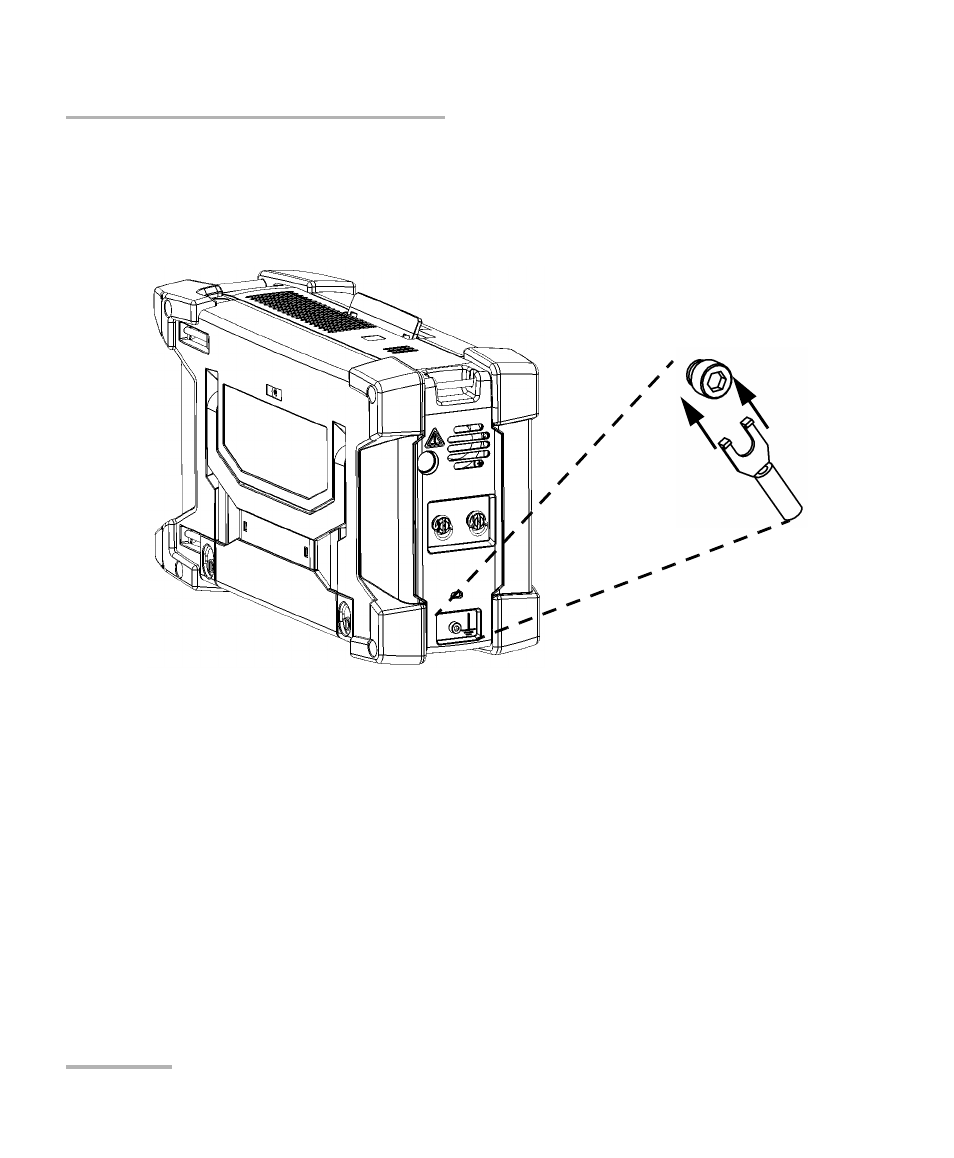

To ground your unit:
1. Position the unit so that you can see its left panel.
2. Place the U-shaped terminal under the grounding stud’s screw head.
3. Turn the grounding stud clockwise to screw it tight.
4. Ground the other end of the wire as per your local regulation.
Your unit is now grounded properly.
