Mportant – EXFO FTB-2 User Manual
Page 277
Maintenance
FTB-2 and FTB-2 Pro
267
Installing or Removing the Power Meter and VFL
4. Place the unit vertically so that its right panel is facing you, and then
locate the protective cover that hides the power meter bay.
5. Using a screwdriver, remove the two screws of the protective cover.
Note: Keep the screws close at hand because you will need them to secure the
power meter in place later.
6. Remove the protective cover.
I
MPORTANT
Do not discard the protective cover. You will need it to protect the
power meter bay if you ever send the power meter for
recalibration.

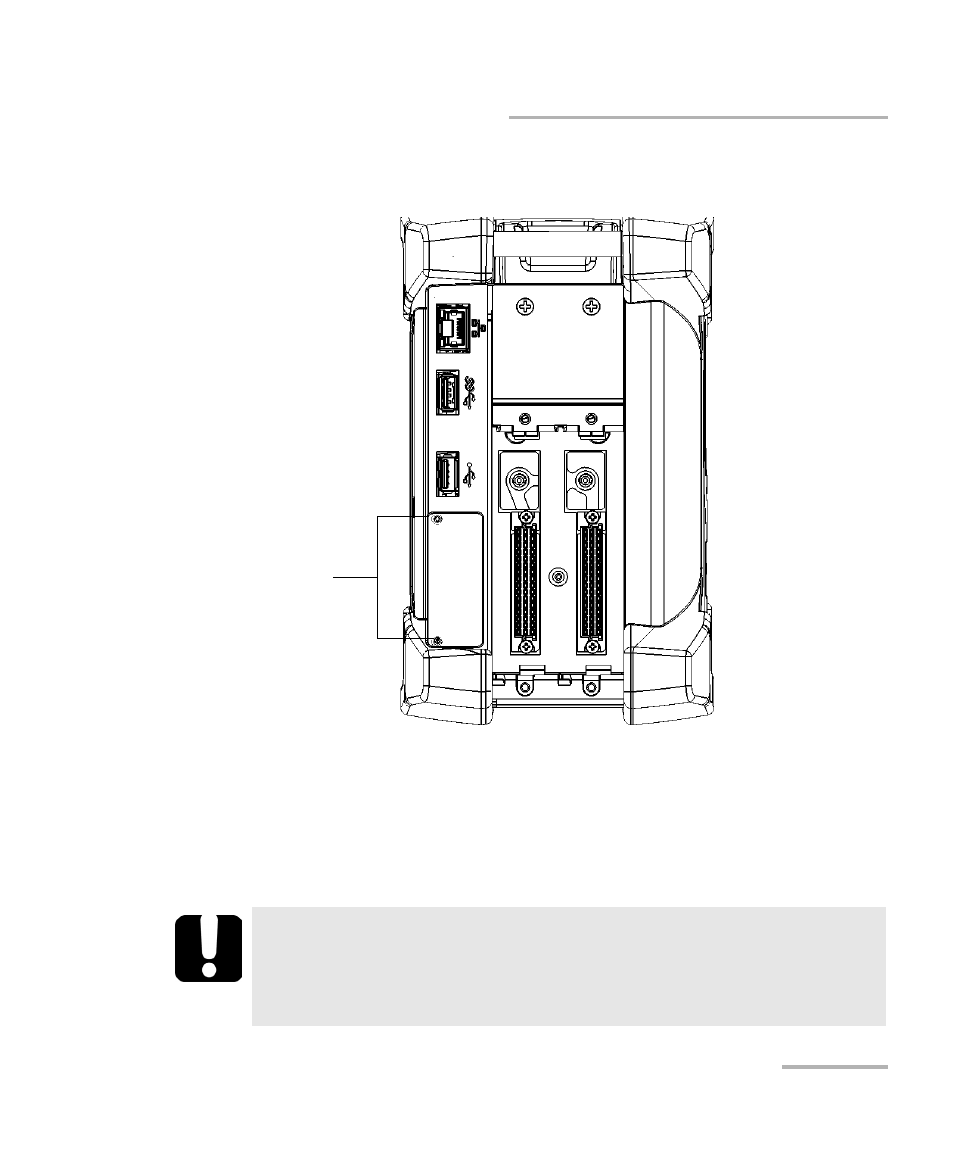

Screws holding the
protective cover in place
