Fiber Inspection Probe 1
1 Introducing the FIP-400 Fiber
Inspection Probe and
ConnectorMax
The FIP-400 Fiber Inspection Probe is a portable video microscope used to
inspect fiber ends. Unlike traditional microscopes, the FIP-400 facilitates
the examination of patchcord connectors and also hard-to-reach
connectors on the back of patch panels and bulkhead adapters.
Probe
The FIP-400 is designed to be an intuitive, easy-to-use piece of equipment.
This video microscope is used for inspecting fiber ends.

The focus knob can be turned in either direction to focus the image.

The magnification button allows you to shift between two levels of
magnification.

The freeze/capture button is used together with the EXFO USB adapter
and your unit or computer. It allows you to capture an image, perform
an analysis, save a file or return to the Live video mode.

The retaining nut holds tips securely in place, ensuring they are always
fastened in the correct position.

The fold out clip at the back of the probe allows you to hang the probe
when you are not using it.
The probe comes equipped with a protective cap that fits over basic tips;
therefore, you do not need to remove the tip before putting the cap on.

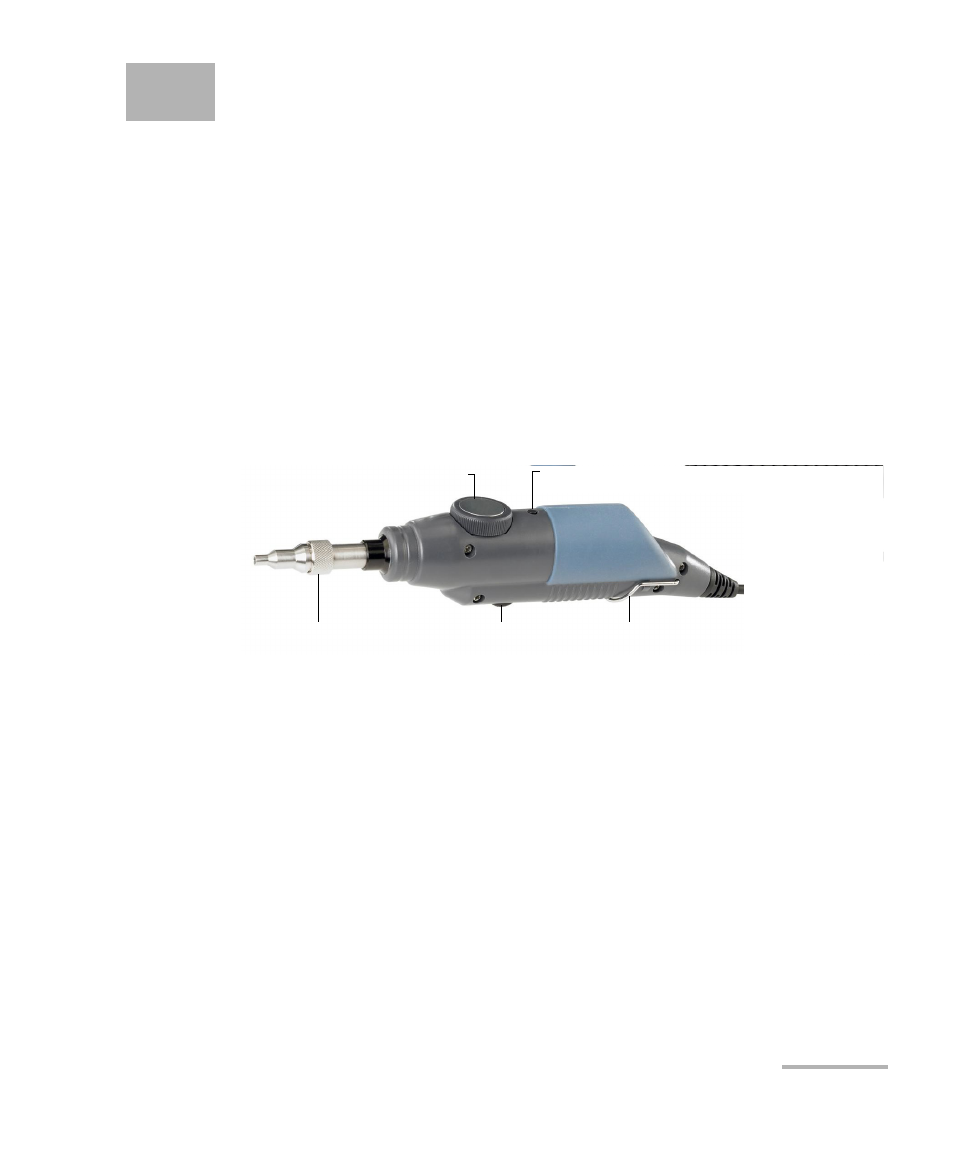

Focus knob
Retaining nut Magnification button
(optional)
Fold out clip
Freeze/capture button
