EXFO FIP-400 Fiber Inspection Probe and ConnectorMax User Manual
Page 49
Inspecting Fiber Ends
Fiber Inspection Probe
43
Analyzing Captures (Optional, Single-Fiber Connector Mode Only)

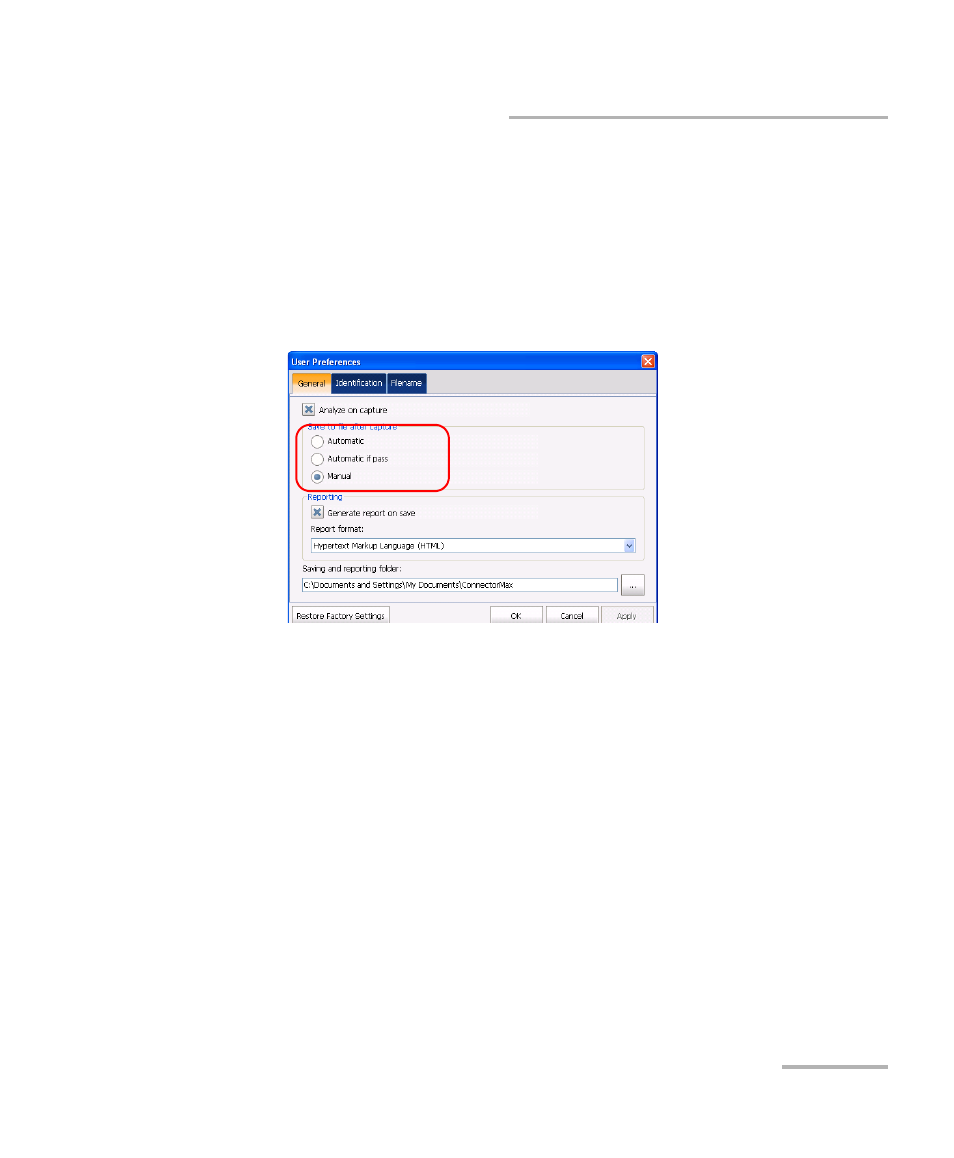

3. Select whether you want the analysis to be automatically saved if the
result of the analysis is pass, or select the manual save option if you
only want to save specific analyses.
Note: The automated save option is only available if you have purchased the
analysis option. If you only have the inspection option, the save option is
automatically set to manual.
4. Click Apply to confirm your choice and continue working in the
window, or OK to confirm your choice and close the window.
