Setting up Your Fiber Inspection Probe and ConnectorMax

FIP-400

Managing and Selecting Test Configurations (Optional)

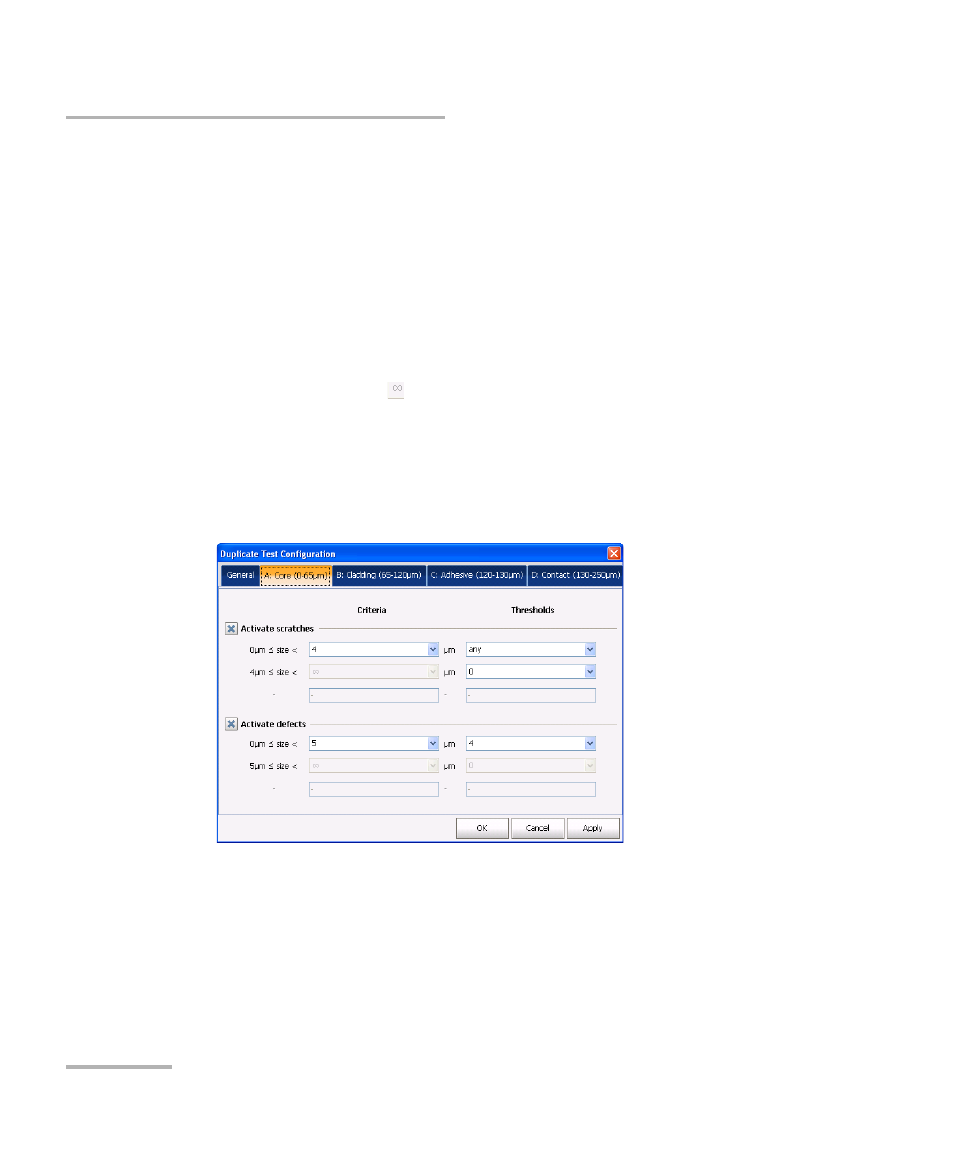

4. Under the various layer tabs, indicate whether you want to be notified

of scratches, defects or both for each zone in the fiber, then set
thresholds for each item you select.

You can set up to 3 criteria per zone, and per anomaly type (scratches
or defects). The thresholds are divided into three categories:



Any: this enables the next criterion, which requires a specific
value.



1 to 10: the next criterion is automatically filled out to show the
infinity symbol ( ) and 0 as a threshold.



0: the criterion definition is complete.

Note: Zone C, as well as zone dimensions cannot be modified, as they are set as

per IEC and IPC recommendations.

5. Click Apply to confirm your choice and continue working in window,

or OK to confirm your choice and close the window.
