Setting up Your Fiber Inspection Probe and ConnectorMax
22 FIP-400
Identifying Fibers
To change fiber information once you have made a capture:

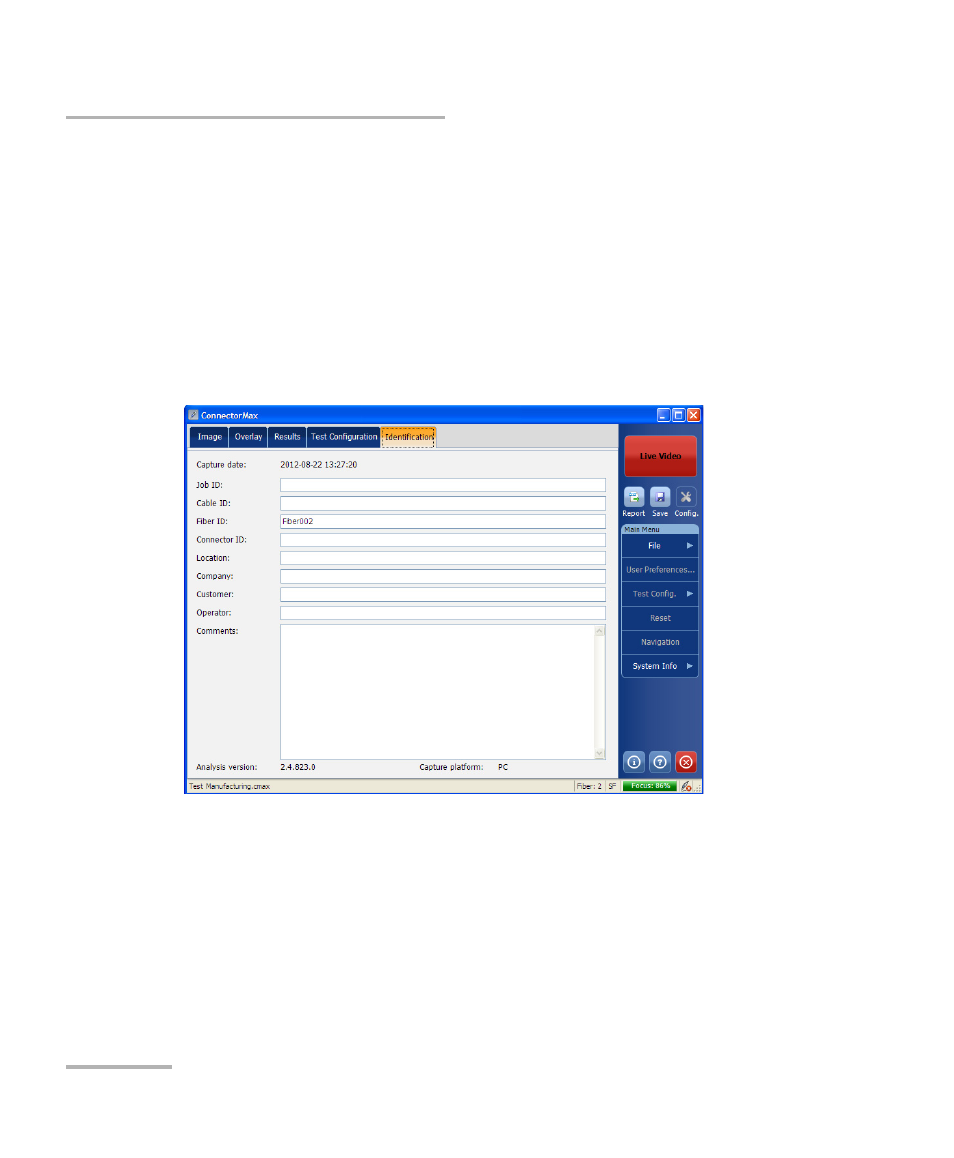

From the main window, select the Identification tab and enter the
information. The details that you have added from the User Preferences
window will already appear on-screen.
Note: In single-fiber connector mode, if you change items in the file name
identification, you will notice that the name at the bottom of the window is
automatically updated. This automated update is active until you save the
file and set the few file ID info.
Note: The analysis version and the capture platform are indicated at the bottom
of the tab.
