Setting Up SATA RAID or AHCI Mode 7 - 7

16. Go to RAID Level: and press .
17. Choose the RAID Level required (see

Table 7 - 1, on page 7 - 3

for details) and

press .

• RAID0 (Stripe)
• RAID1 (Mirror)
• Recovery

18. Go to any of the disks listed under Select Disks: and select a drive name and

press .

19. Move the cursor down (use the arrow keys) onto to X (o select the SSD drives

required and press .

• If you have selected a Recovery level RAID then you need to select one drive to

be Master disk (M) and one disk to be the Recovery disk (R)

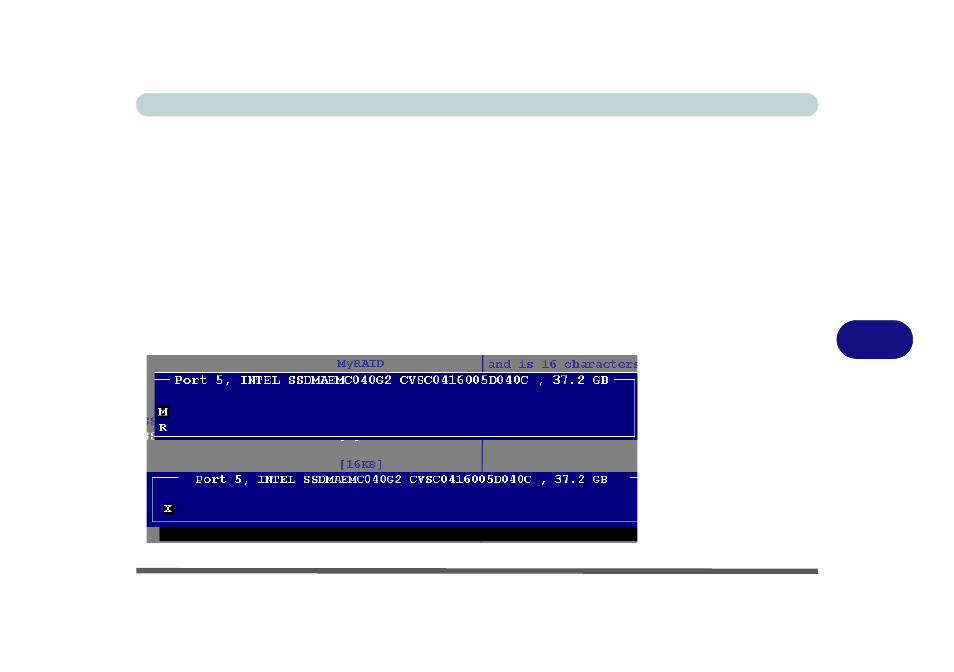

Figure 7 - 3

Select Disks

(Advanced > Intel(R)

Rapid Storage

Technology)

For Recovery

For Stripe or Mirror
