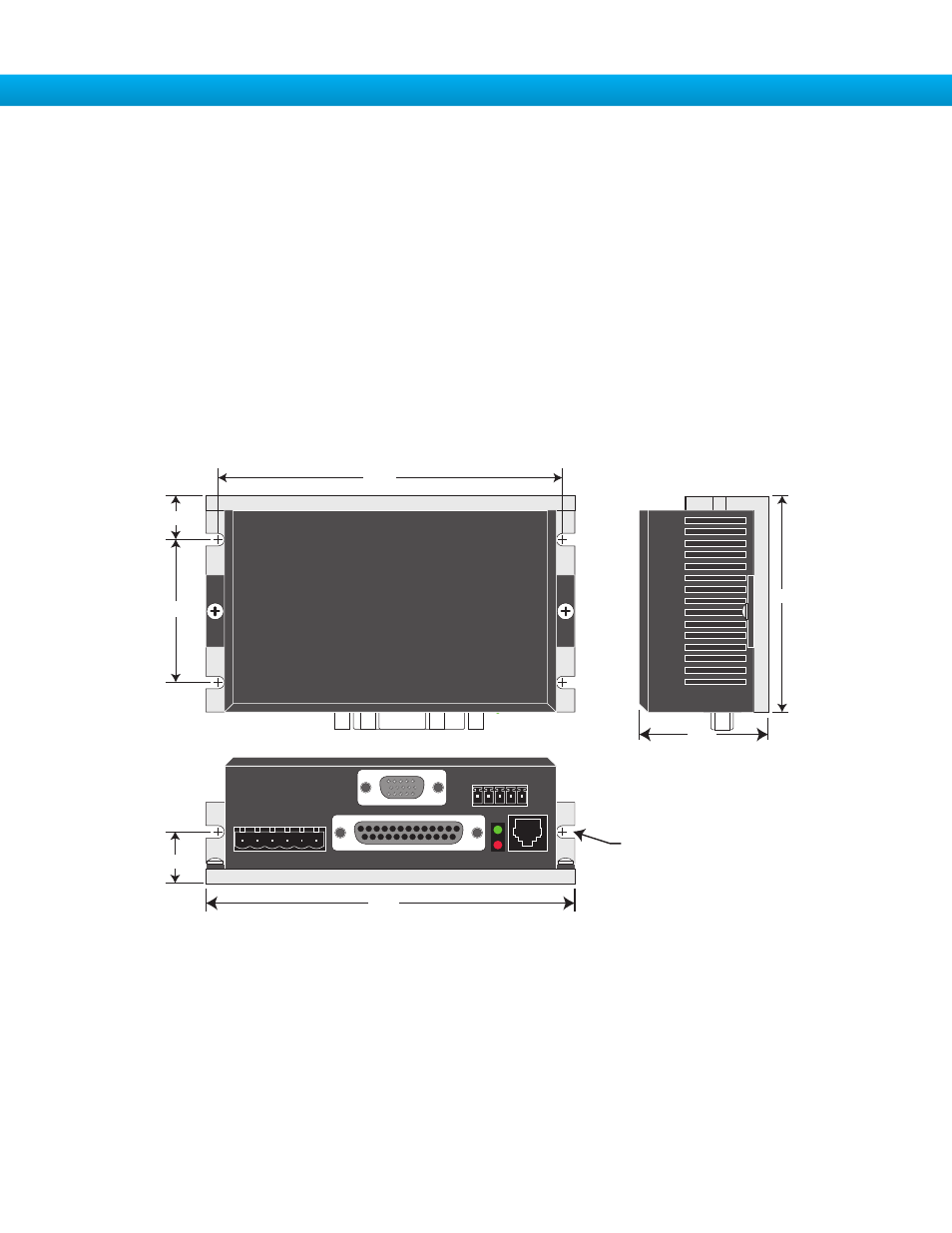

Mechanical Outline
Mounting the Drive
You can mount your drive on the wide or the narrow side of the chassis using #6 screws. If possible, the drive should be securely
fastened to a smooth, flat metal surface that will help conduct heat away from the chassis. If this is not possible, then forced air-
flow from a fan may be required to prevent the drive from overheating.
• Never use your drive in a space where there is no air flow or where other devices cause the surrounding air to be
more than 40°C.
• Never put the drive where it can get wet or where metal or other electrically conductive particles can get on the
circuitry.
• Always provide air flow around the drive. When mouting multiple STP drives near each other, maintain at least one
half inch of space between drives.
3.0
1.775
5.0
6X SLOT 0.16
WIDE, FULL R
0.663
1.98
0.61
4.74
